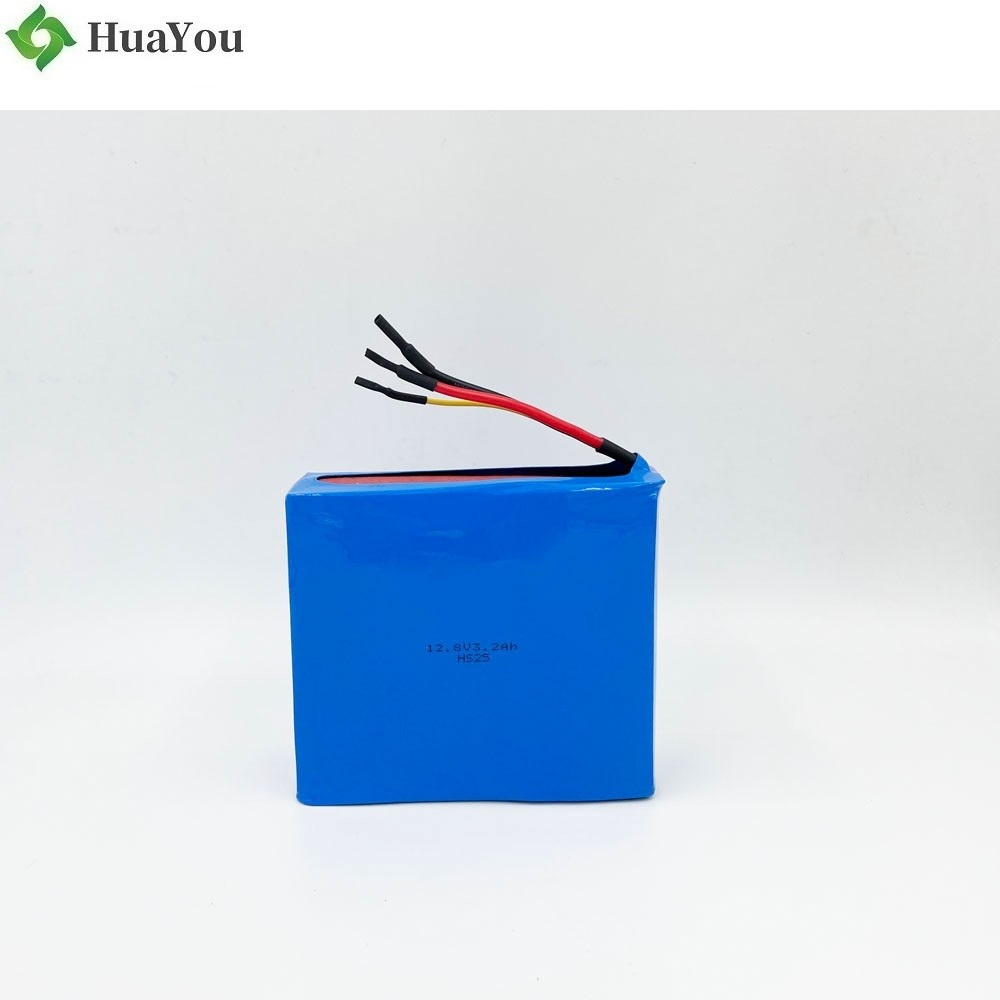

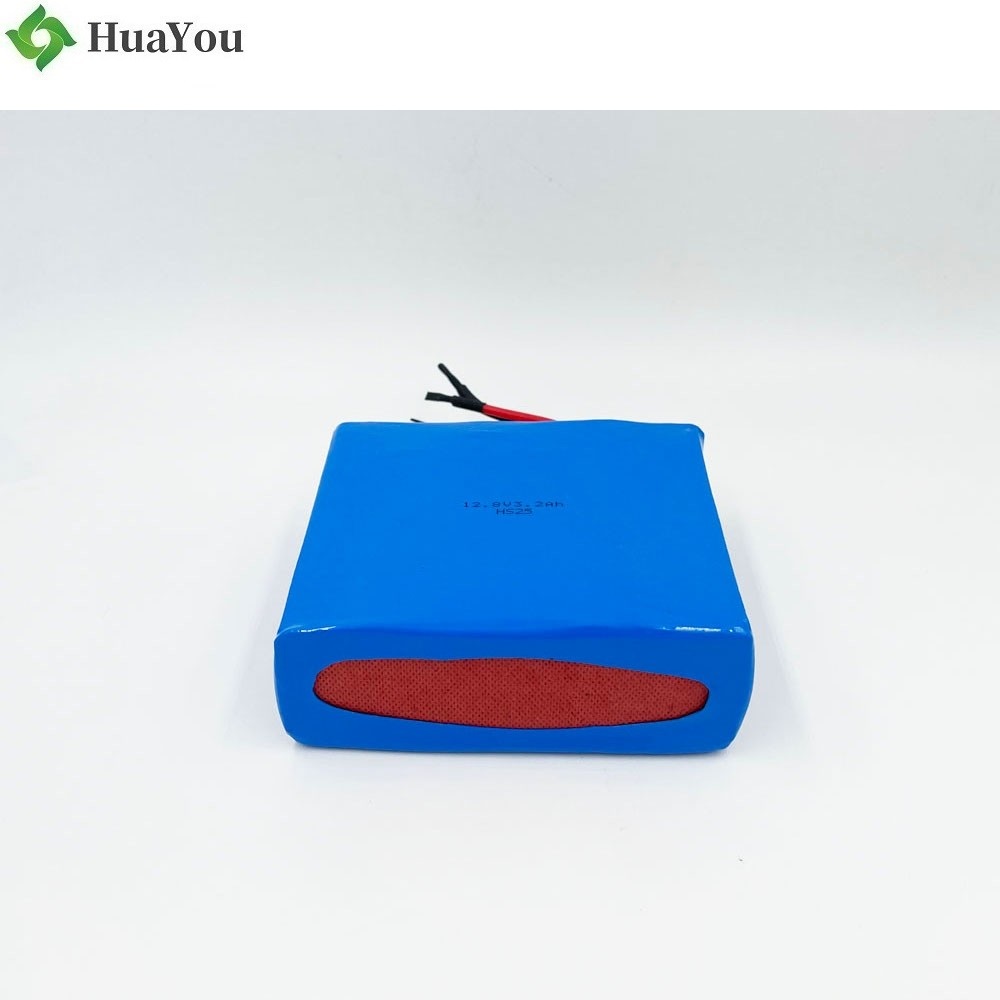

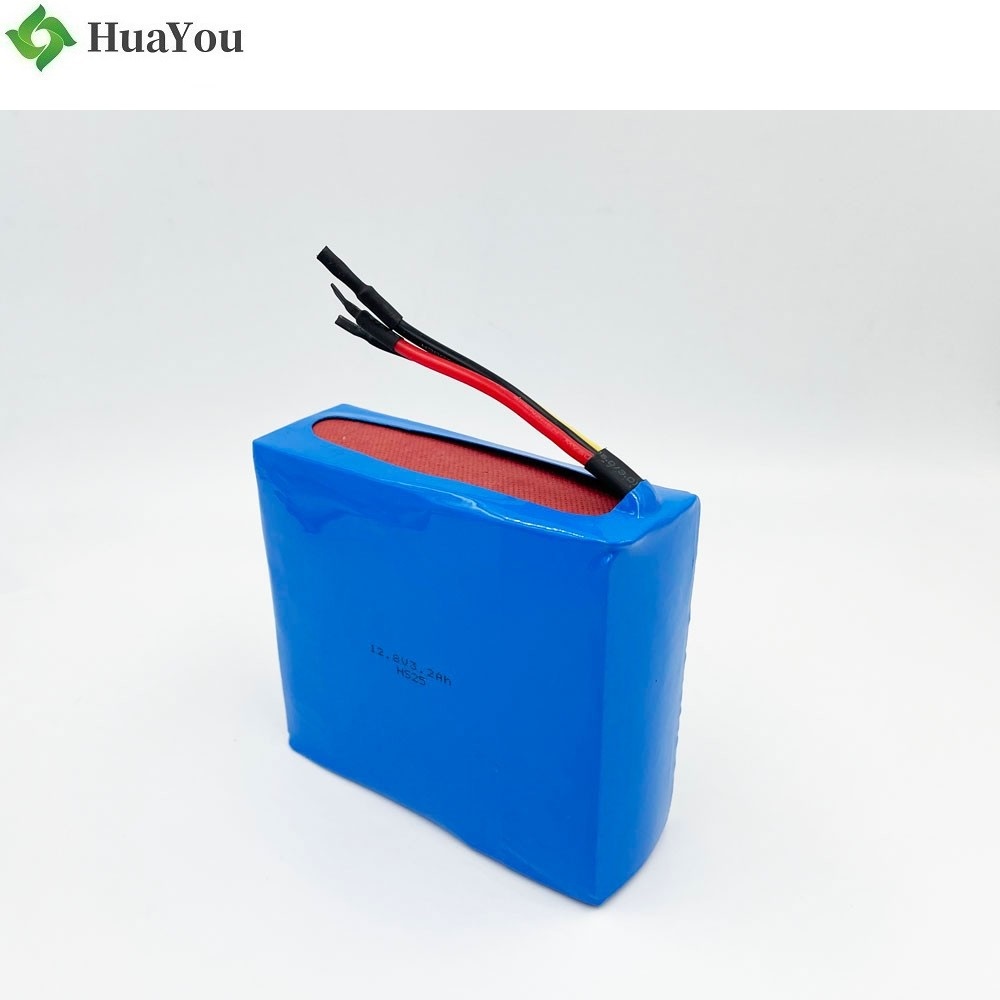

Cell Factory Customize For Rechargeable Power Tools LiFePO4 Battery HY 26650-4S 3200mAh 12.8V Lithium Iron Phosphate Battery Pack

$22.10
In stock
SKU
HY 26650-4S 3200mAh 12.8V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 26650-4S
    Type: LiFePO4
    Nominal Voltage: 12.8V
    Size: 33*83*95mm
    Nominal Capacity: 3200mAh
    Product name: 26650-4S
    Warranty: 1 Year
    Weight: 400g
    Cycle life: 1000 Times
    Capacity: 3.2Ah
    Cell Voltage: 3.2V
    Application: Power Tools Battery
    Certificate: CE/RoHS/UN38.3/MSDS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

Li-Ion 18650 Battery

3200mAh Rechargeable Power Tools LiFePO4 Battery

3200mAh 12.8V Lithium Iron Phosphate Battery Pack

Factory Customize 3200mAh LiFePO4 Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

3220mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

3200mAh

2

Nominal Voltage

12.8V

Mean Operation Voltage

3

Voltage at end of

8.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

14.4±0.03V



5

Internal Impedance

≤35mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 14.4V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 8.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 14.4V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 8.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max95mm

Width: max83mm
Thickness: max33mm

Initial  Dimension
