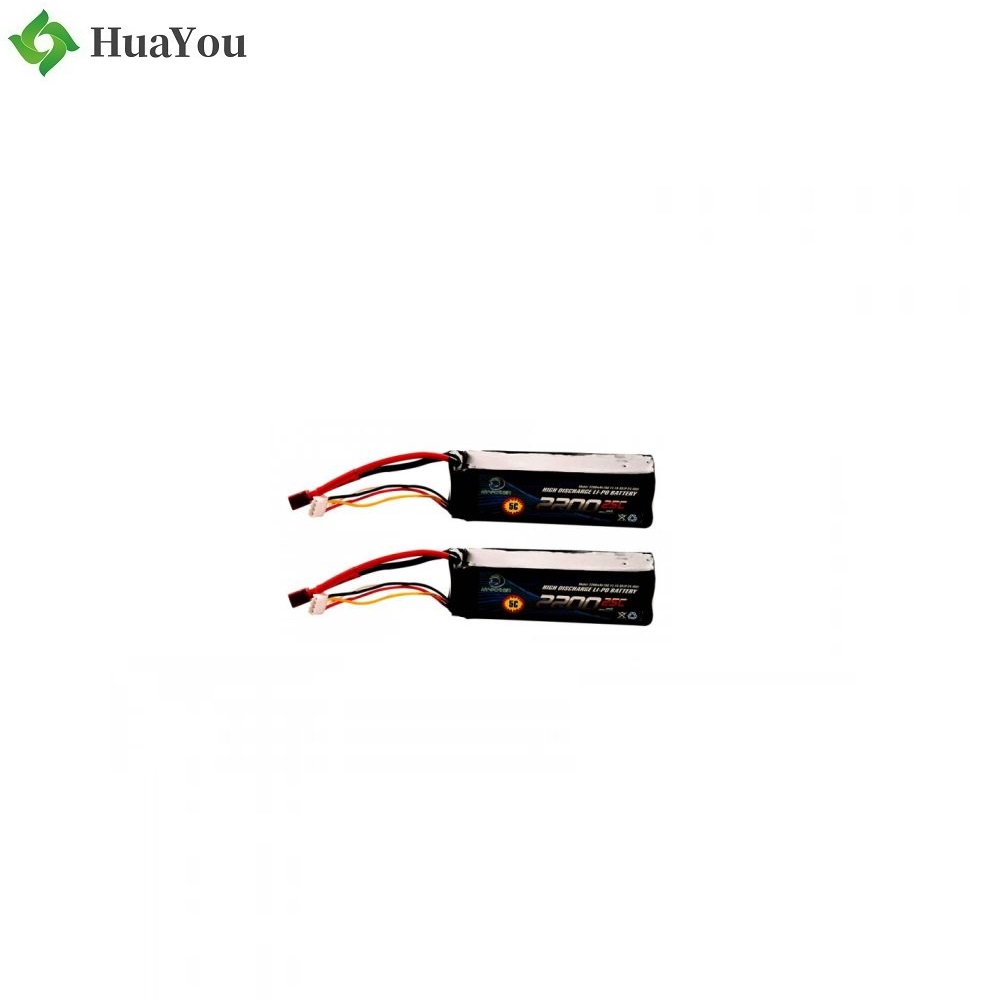

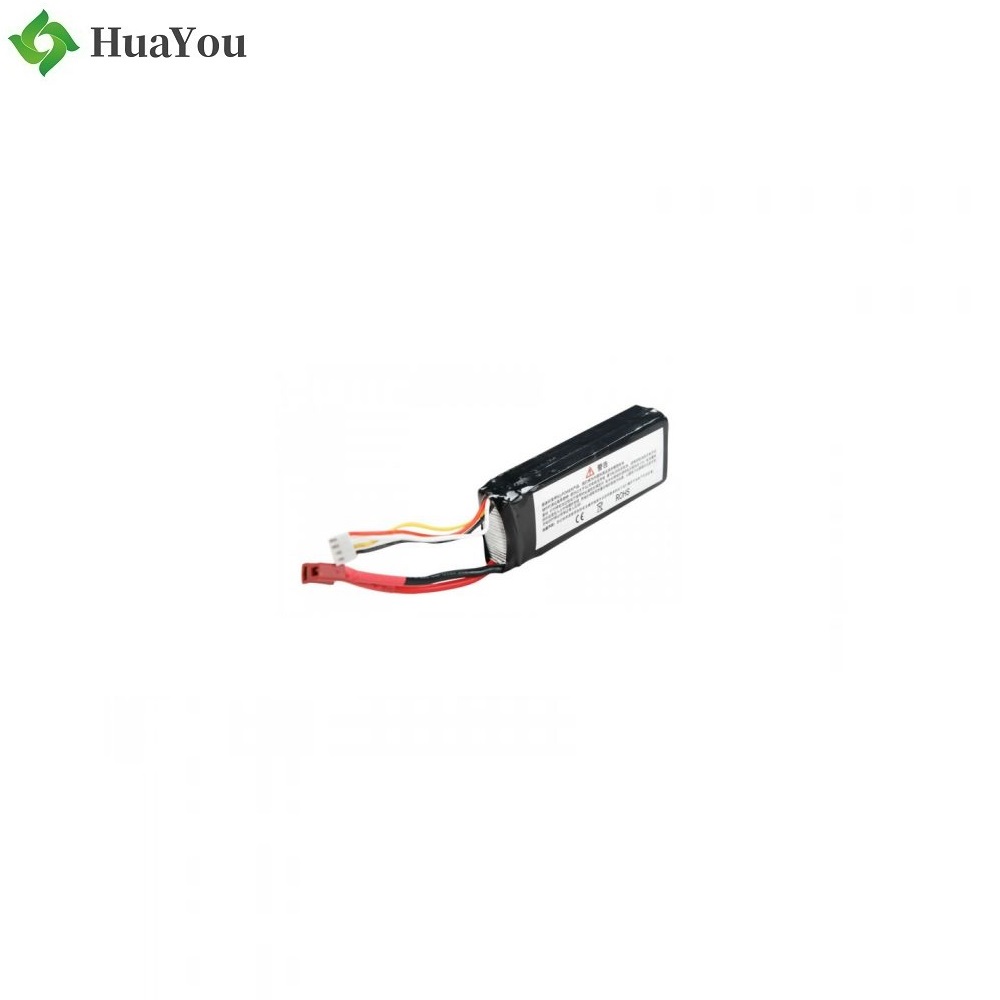

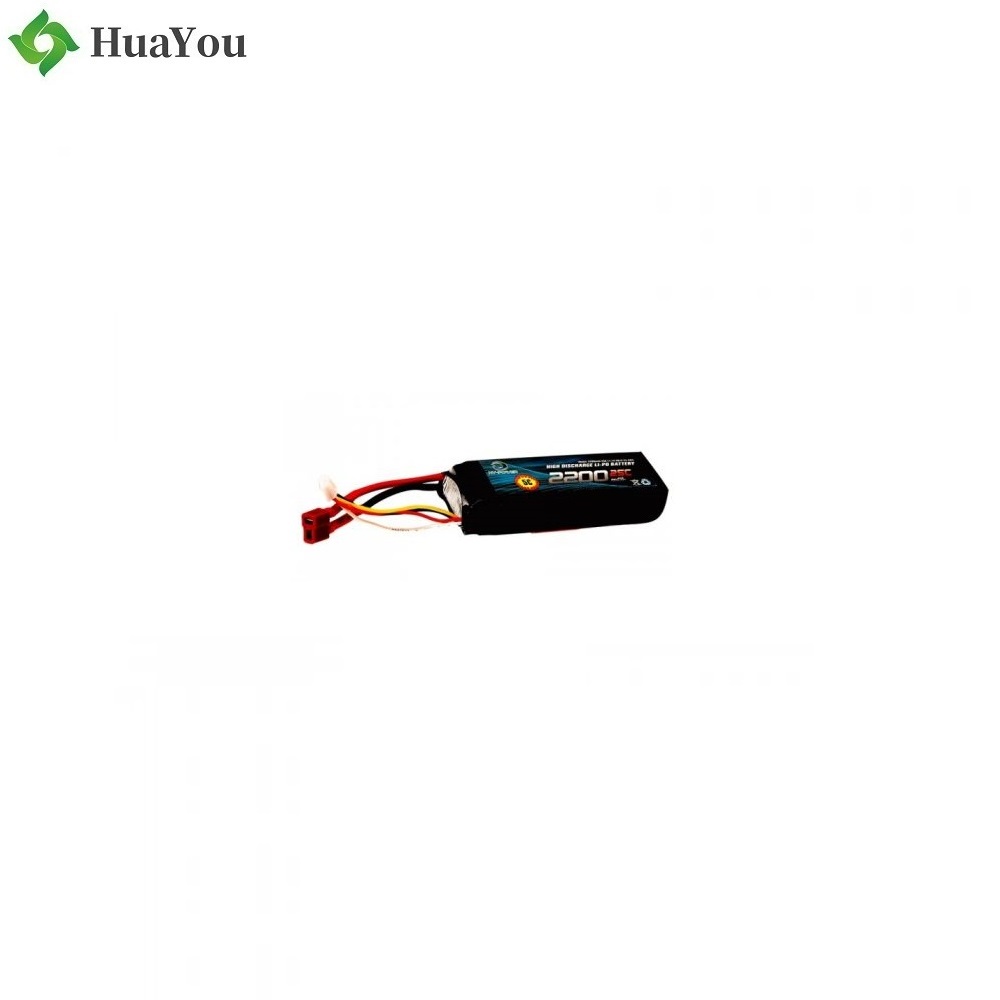

China Lithium Battery Manufacturer Customize HY 903480 2200mah 25c 11.1v High Rate Lipo Battery for RC models
$10.50
In stock
SKU
HY 903480 2200mah 25c 11.1v
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !
Typical Capacity: 2200mAh
Minimum Capacity: 2150mAh
Energy: 24.42Wh
Nominal Voltage: 11.1V
Open Circuit Voltage: 11.1~11.8V
Internal Impedance: ≤20mΩ
Charge voltage: 12.6V
High Rate Battery - HY 903480 - 2200mah - 25c - 11.1v - Lithium Ion Battery - Rechargeable
| No. | Item | Criteriar | Remarks | |
| 1 | Typical Capacity Minimum Capacity |
2200mAh 2150mAh |
Discharge:0.2CmA cut-off voltage:9.0V 0.2C | |
| 2 | Energy |
24.43Wh | ||
| 3 | Nominal Voltage | 11.1V | ||
| 4 | Open Circuit Voltage | 11.1~11.8V | ||
| 5 | Internal Impedance | ≤20mΩ |
AC 1KHz after standard charge | |
| 6 | Charge voltage | 12.6V | ||
| 7 | Standard charge current |
2200mA | 1.0C | |
| 8 | Max. charge current | 4400mA | 2.0C | |
| 9 | Max. discharge current | 55.0A( 25.0C) 110.0A (50.0C) | Cont Discharge CurrentBurst Discharge Current | |
| 10 | Discharge cut-off voltage | 9.0V | ||
| 11 | Operating Temperature |
0~+45℃ -10~+50℃ |
ChargingDischarging | |
