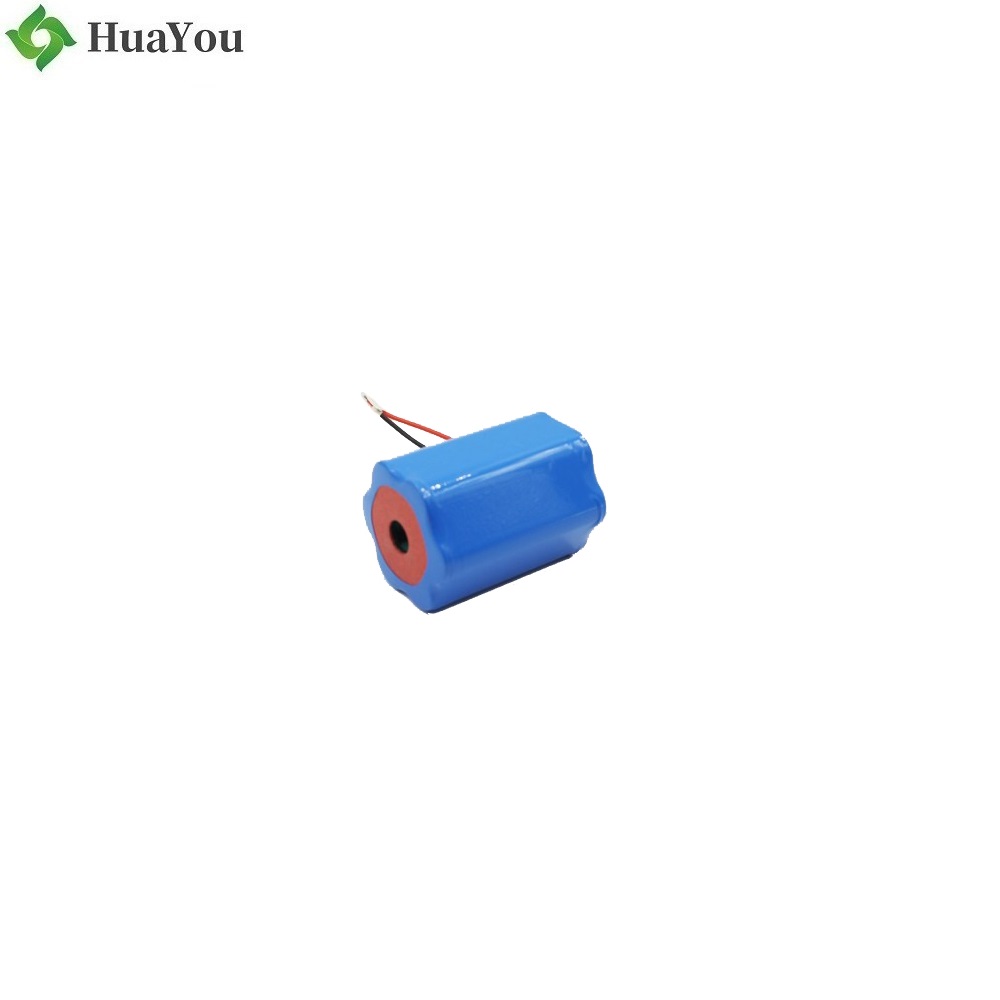

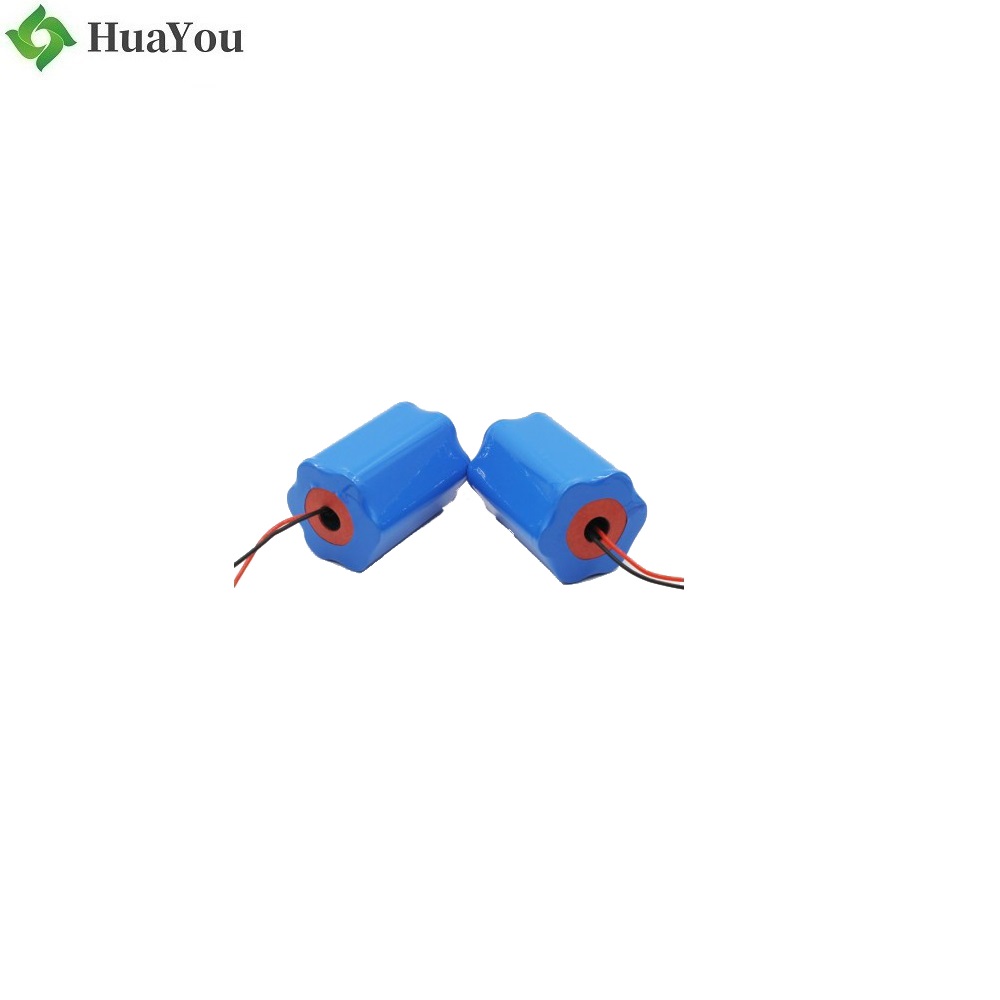

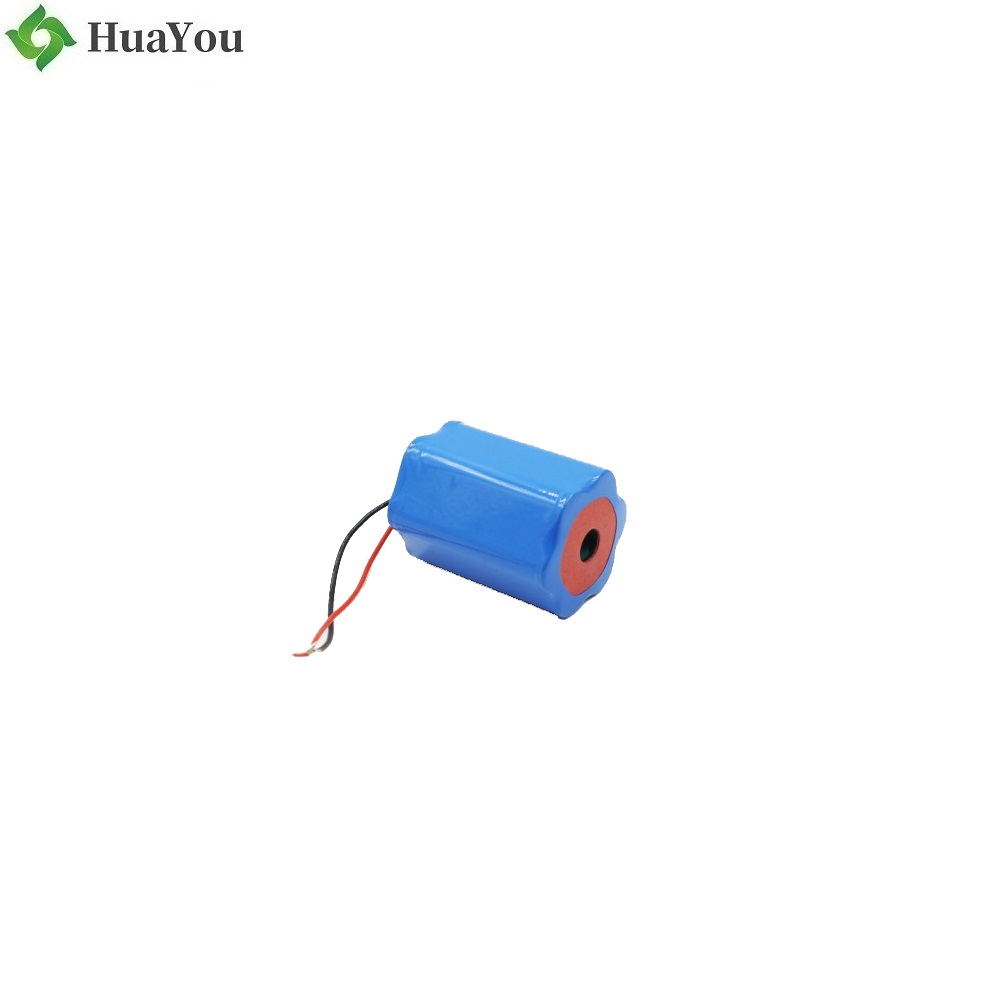

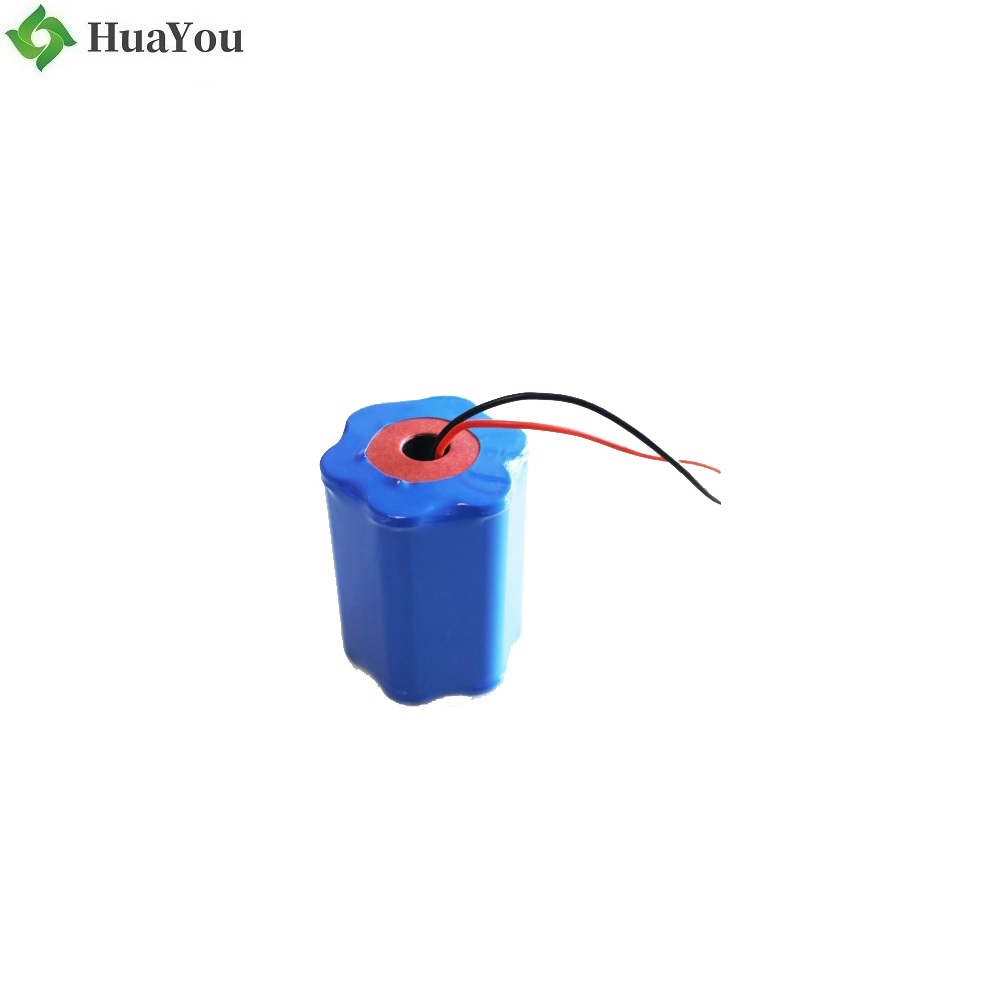

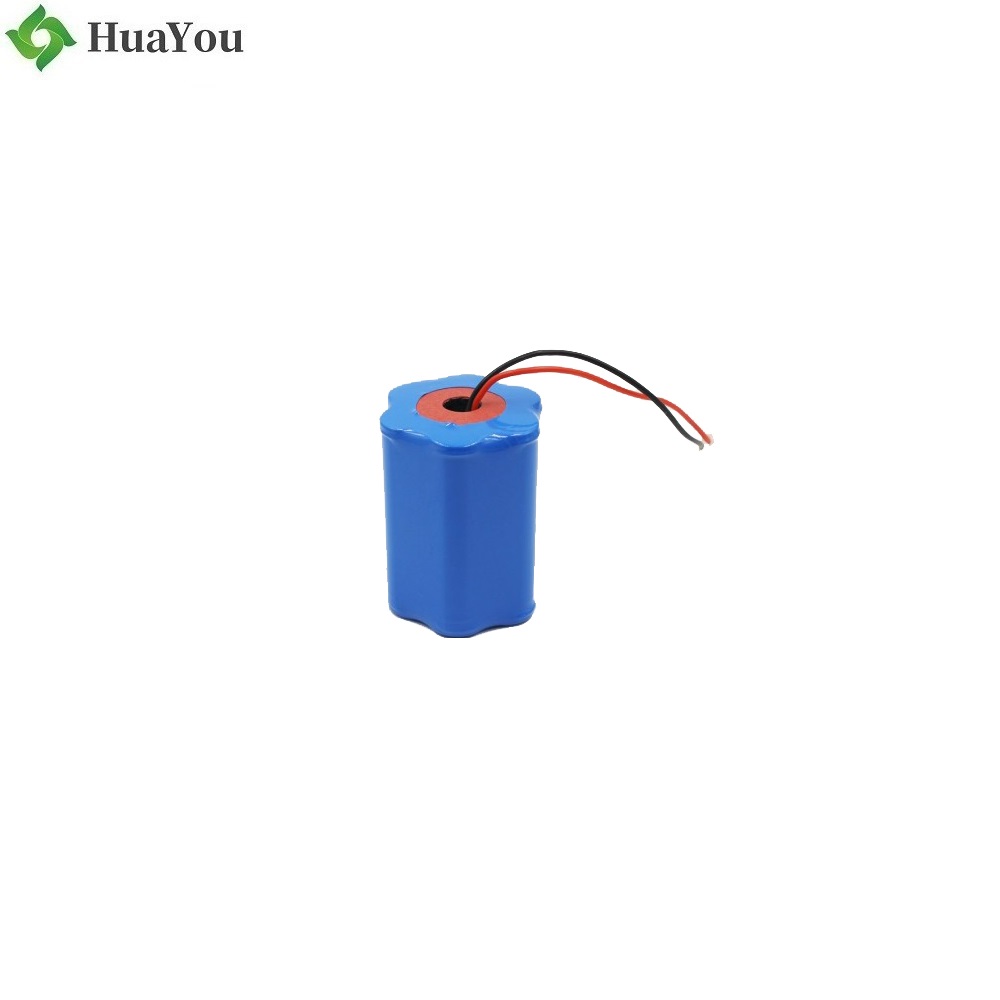

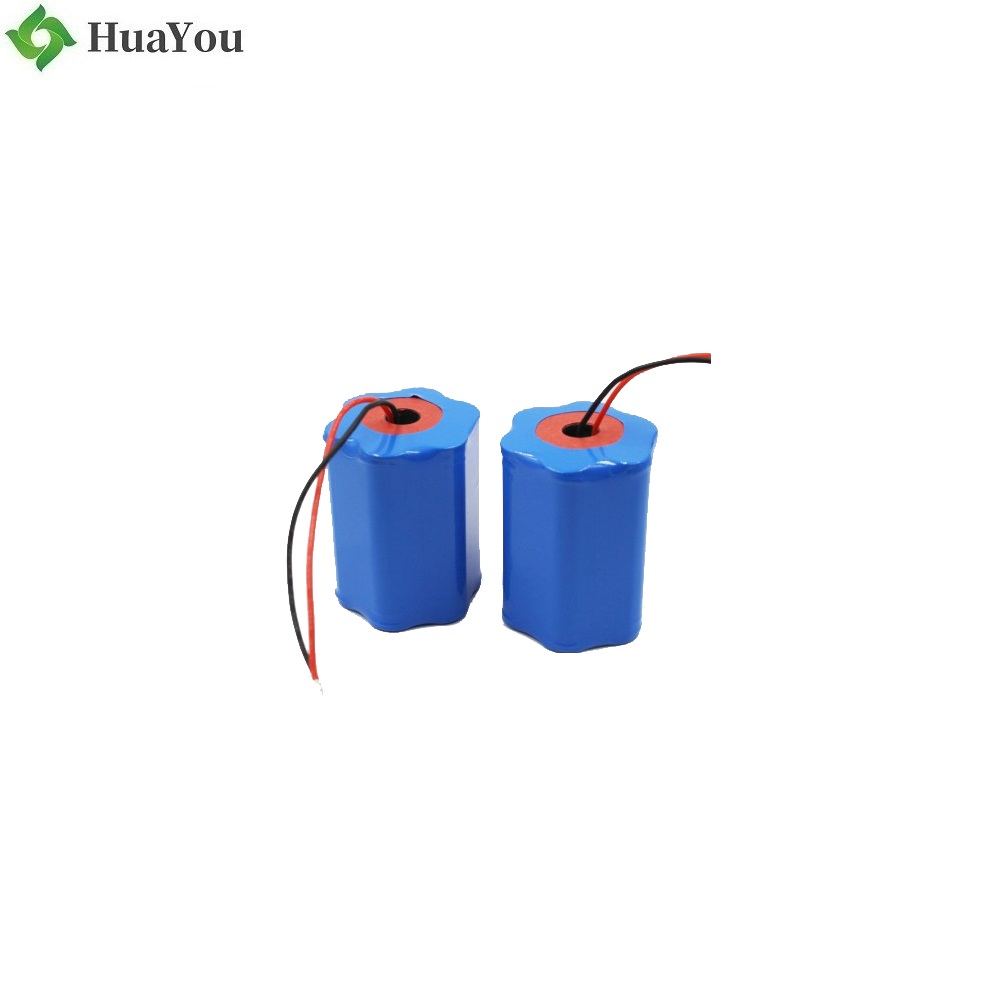

China Lithium Battery Manufacturer OEM HY 18650 6S 2200mAh 22.2V Special Li-Ion Battery
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !
- Model Number: Lithium Battery Pack
- Type: Li-Ion
- Nominal Voltage: 22.2v
- Nominal Capacity: 2200mAh
- product name: li ion battery cell
- Norminal Voltage: 22.2v
- Charge Upper Limit Voltage: 4.25±0.025V/Cell(selectable)
- Cycle life: 500 Times
- Battery PCB Protection: Available
- Battery type: li ion battery cell
- Warranty: 12 Months
Product Parameters
|
Number |
Item |
Parameter |
|
1 |
Nominal voltage |
22.2v |
|
2 |
Nominal capacity |
2200mAh(0.2C discharge) |
|
3 |
Continuous charge current |
3-5A |
|
4 |
Over current protection |
9.6-12.0A(adjustable) |
|
5 |
Applicable power |
≤53W |
|
6 |
Over charge protection |
4.25 ± 0.025V/Cell(optional) |
|
7 |
Over discharge protection |
2.50 ± 0.025V/Cell(optional) |
|
8 |
Charge mode |
Constant current/constant voltage |
|
9 |
Charge voltage |
25.4-25.6V |
|
10 |
Charge current |
0.5-1.2A |
|
11 |
Charge temperature |
0~45℃,45~85%RH |
|
12 |
Discharge temperature |
-20~55℃,45~85%RH |
|
13 |
Temperature and humidity |
-20~+55℃,45~85%RH (over 1 month) |
|
-20~+45℃,45~85%RH (over 3 month) |
||
|
-5~+20℃,45~85%RH (over 1 year) |
||
|
14 |
Dimensions |
Refer sample |
|
Refer sample |
||
|
Refer sample |
||
|
15 |
Weight |
>300g |
