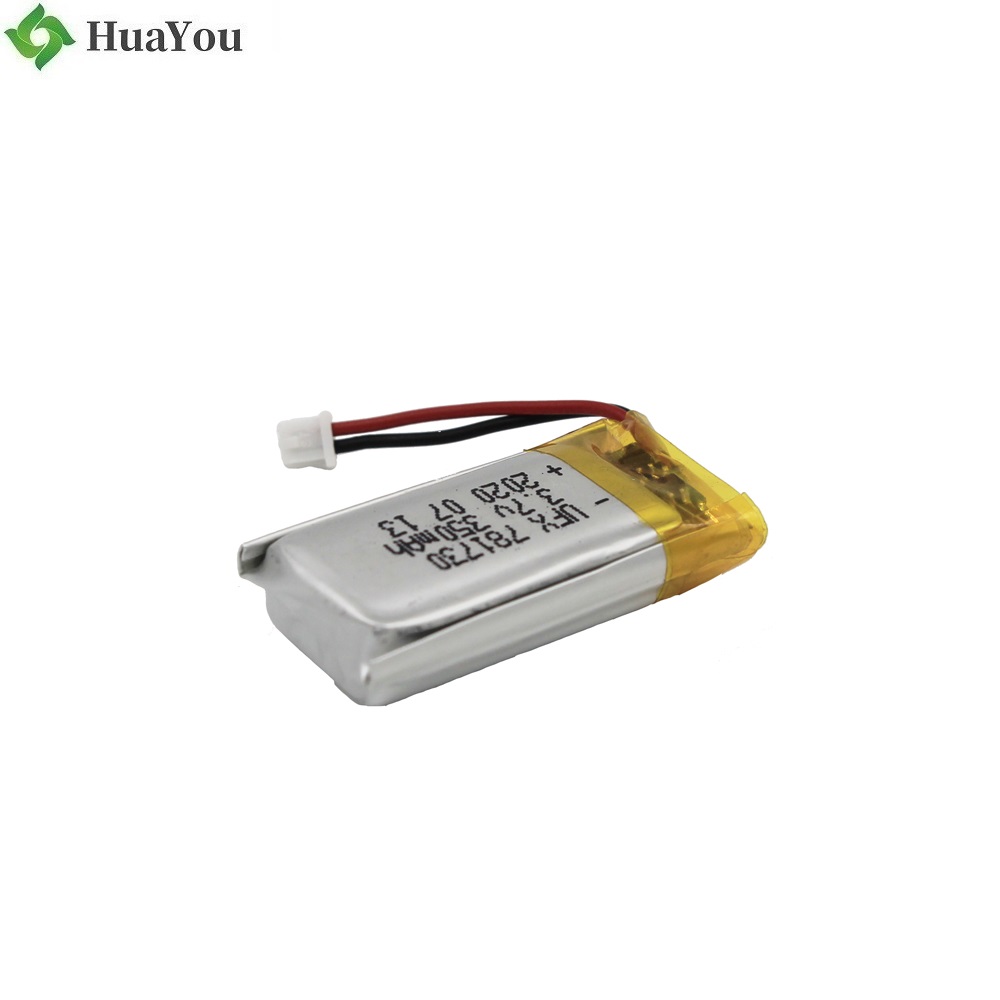

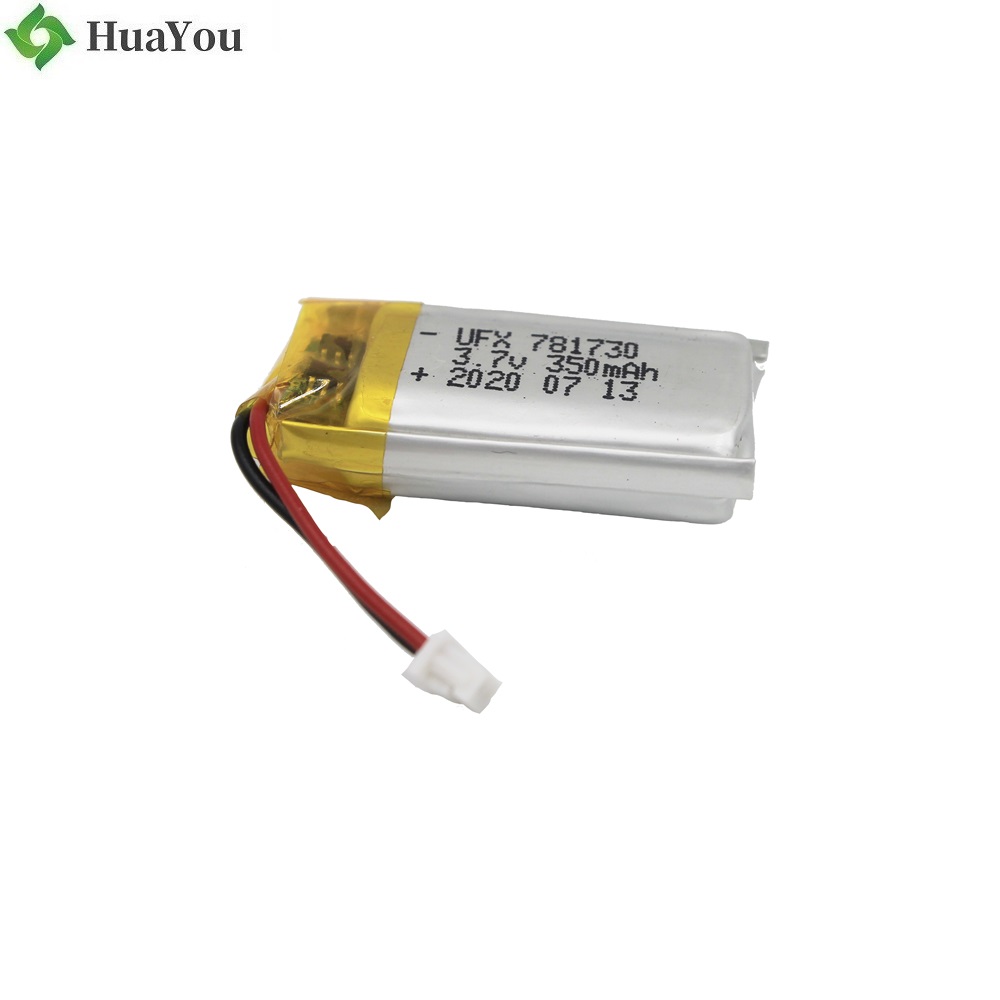

China Lithium Cells Factory Supply Rechargeable Lithium Battery for Bluetooth Earphone HY 781730 350mAh 3.7V LiPo Battery

$1.56
In stock
SKU
HY 781730 350mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  • Place of Origin: Guangdong, China
    Brand Name: HY
    Model Number:781730
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 7.8*17*32mm
    Nominal Capacity: 350mAh
    Product name: HY 781730 Li-ion battery
    Warranty: 1 Year
    Weight: 8g
    Cycle life: 500 Times
    Application:
    Bluetooth Earphone
    Certificate: CE/RoHS/UN38.3/MSDS/KC/UL
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

781730 Lithium Polymer Battery

 781730 350mAh 3.7V LiPo Battery

350mAh Lithium Battery for Bluetooth Earphone

China Lithium Cells Factory Supply 781730 Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

370mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

350mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤345mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max32mm

Width: max17mm
Thickness: max7.8mm

Initial  Dimension
