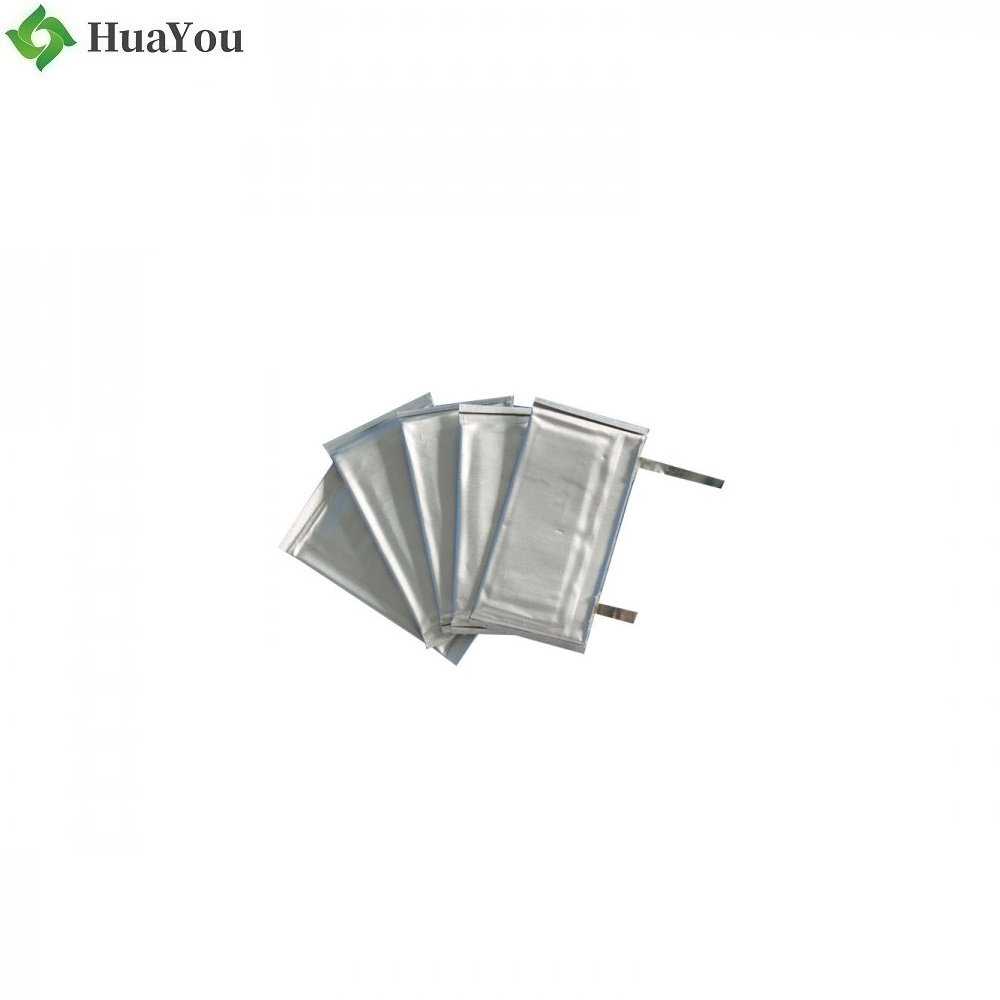

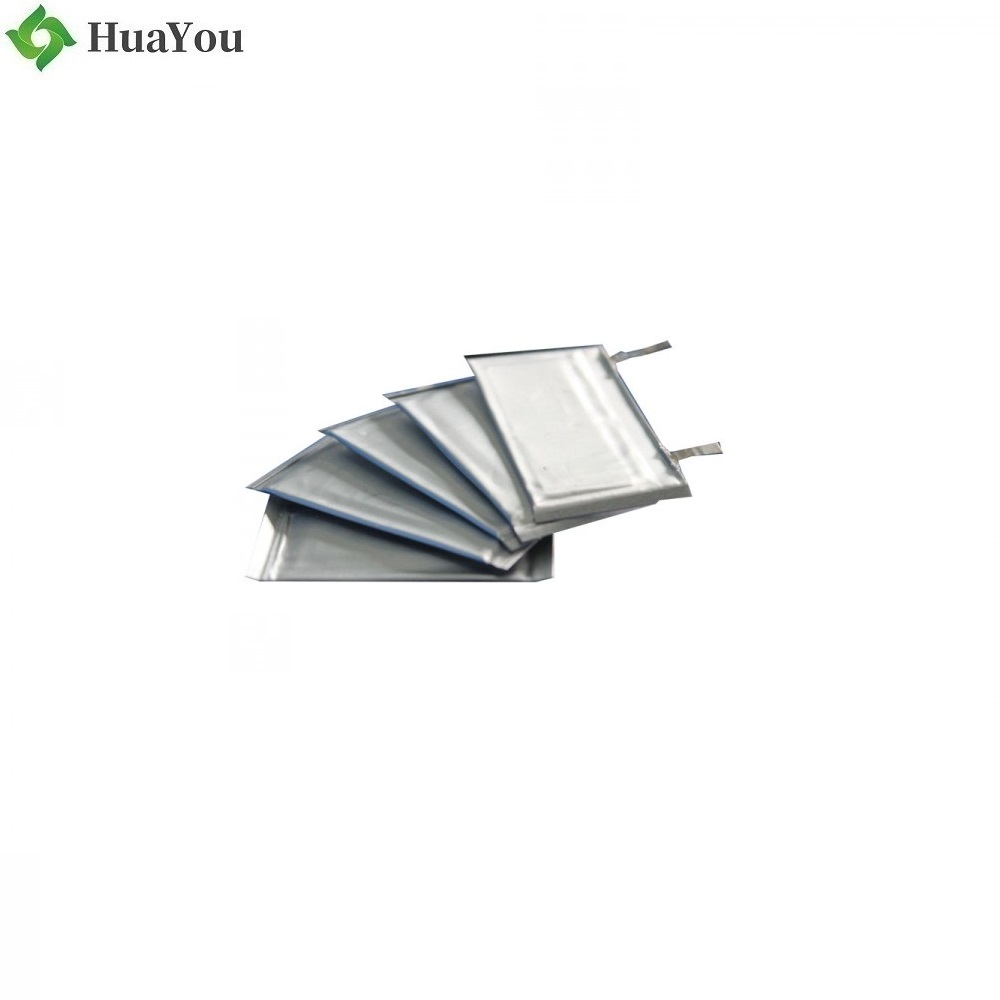

China Lithium Cells Factory Supply Ultra Thin Batterie HY 014018 30mAh 3.7V Polymer Lithium Ion Battery

$3.00
In stock
SKU
HY 014018 30mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

Model: super-thin lipo battery
Size: T1 *W40*L18mm
Capacity: 30mAh
Voltage:3.7V
Weight: 1.5g

Super-thin Battery - HY 014018 - 30mAh - 3.7V - Lithium Ion Battery - Rechargeable



Li-Ion 18650 Battery

Super-thin Battery - HY 014018 - 30mAh - 3.7V - Lithium Ion Battery - Rechargeable

Super-thin Battery - HY 014018 - 30mAh - 3.7V - Lithium Ion Battery

Product Parameters

 No.

Item

General Parameter

Remark

1

Rated Capacity

Typical30mAh     Minimum28mAh

Standard discharge0.2C C5A) after Standard charge
2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of Discharge

2.75V

Discharge Cut-off Voltage

4

Charging Voltage

4.2±0.03V
5

Internal Impedance

≤1100mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 6h

7

Standard discharge

Constant current 0.2 C5A

end voltage 3.0V


8

Fast charge



Constant Current 0.5C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 2.5h

9

Fast discharge

Constant current 0.2C5A

end voltage 3.0V


10

Maximum Continuous Charge Current

1.0 C5A
11

Maximum Continuous Discharge Current

1.0C5A
12

Operation Temperature Range

Charge:0~45℃

Discharge:-20~60℃

60±25%R.H.

Bare Cell

13

Storage Temperature Range

Less than 1 year: -20~25℃

less than 3 months: -20~40℃

60±25%R.H.

at the shipment stat
