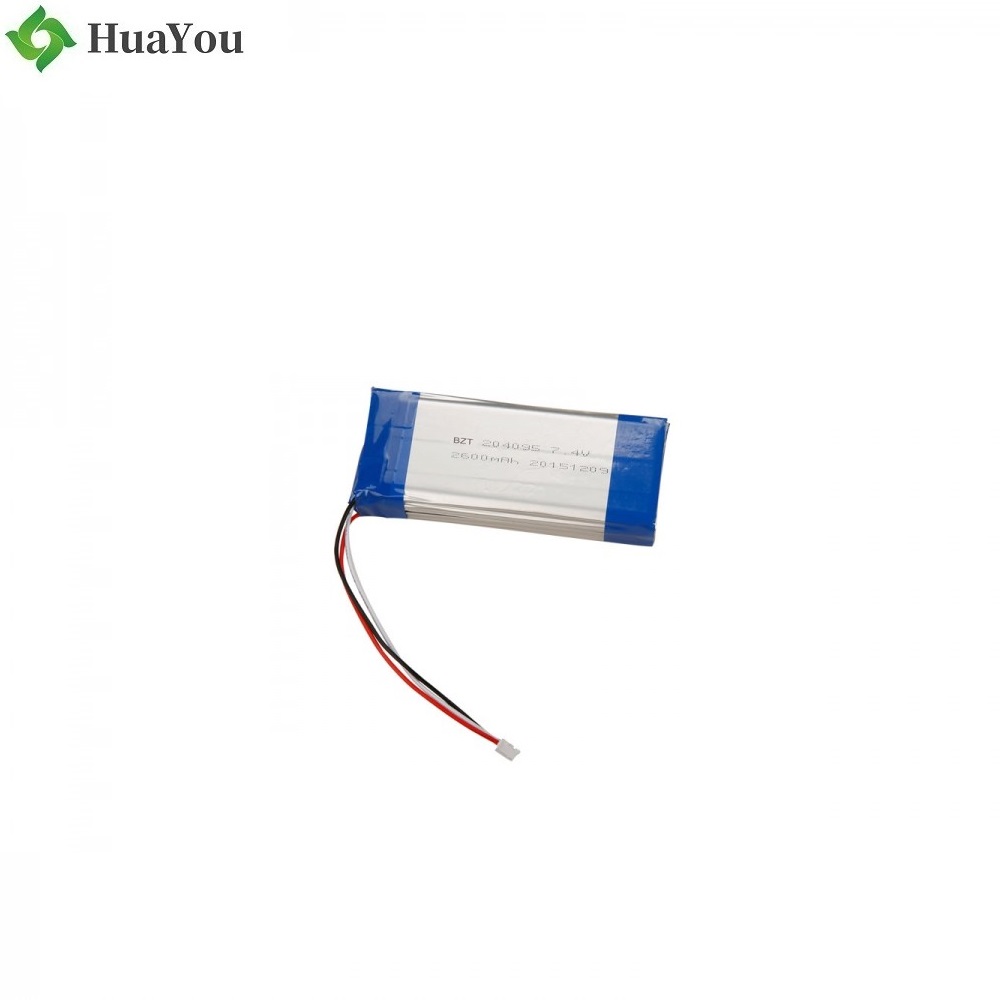

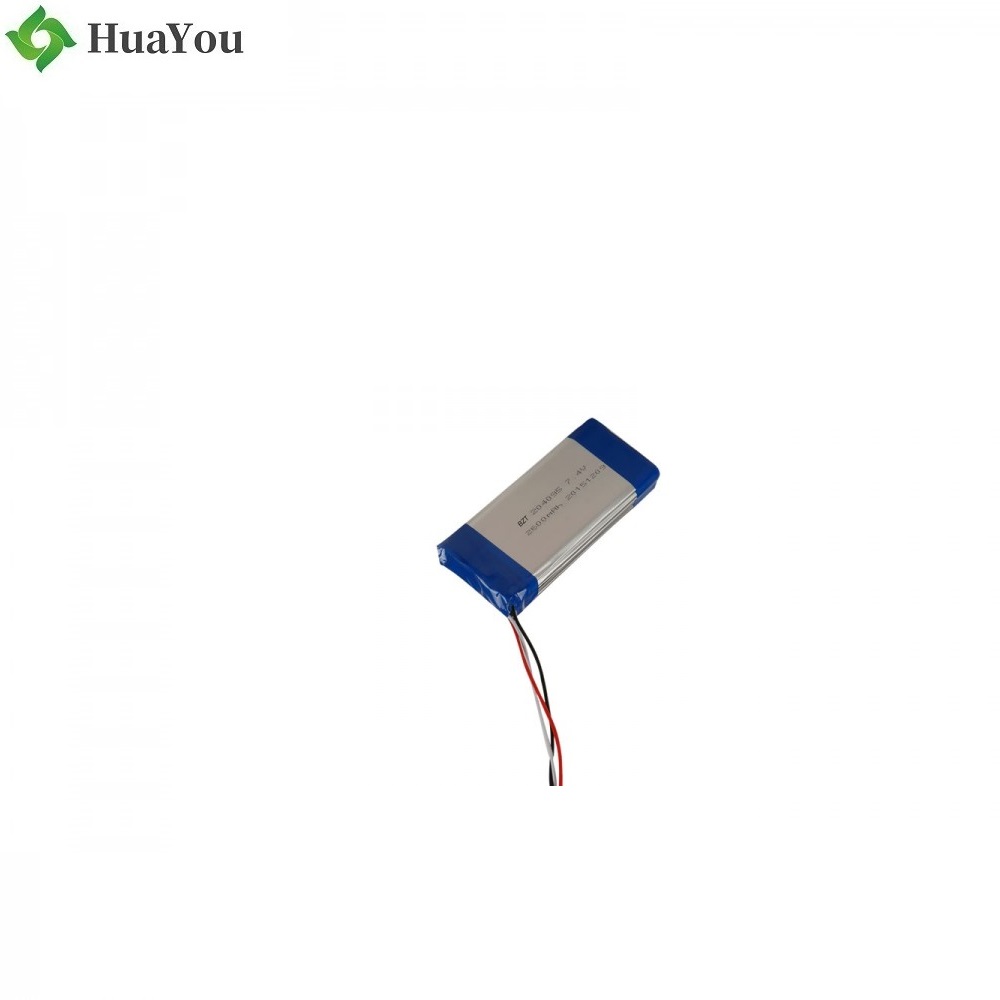

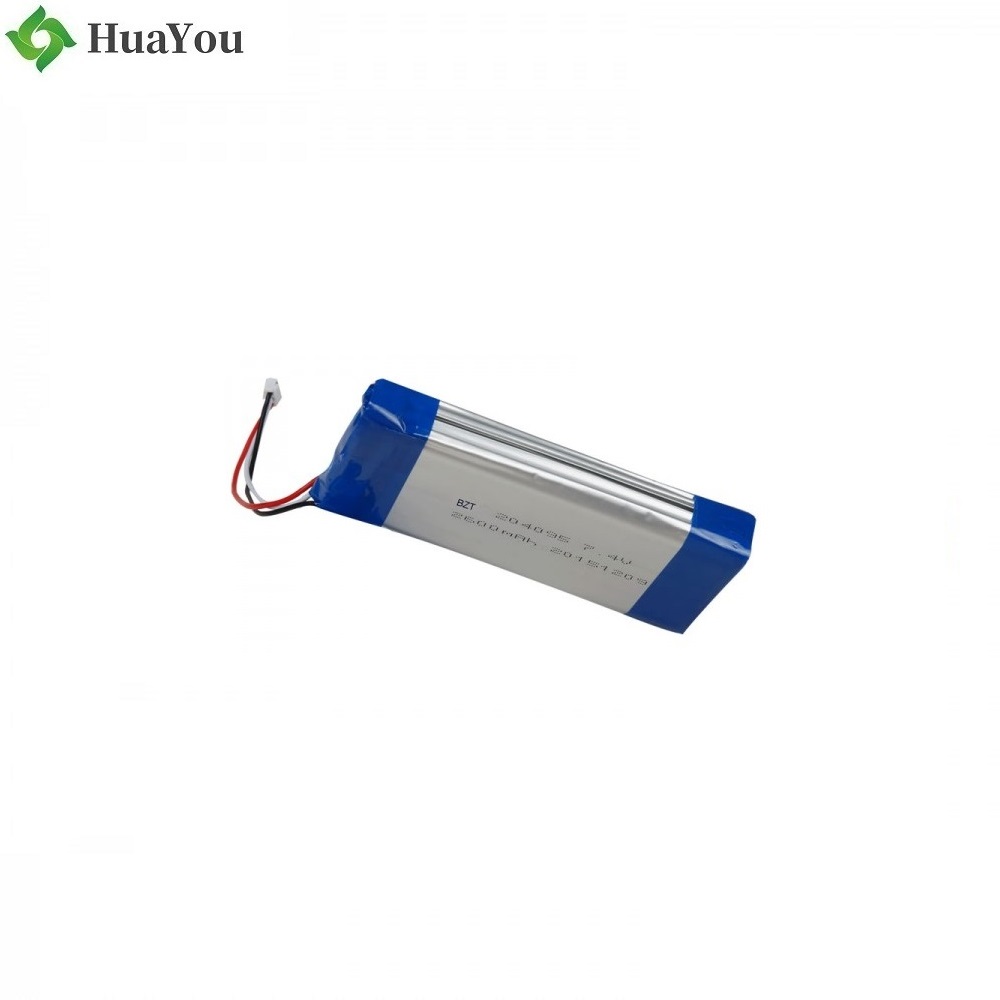

China Lithium Cells Manufacturer Custom-made HY 204095 7.4V 2600mAh Li-polymer Battery for Medical equipment
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !
Voltage:7.4V
Medical Battery - HY 204095 - 7.4V - 2600mAh - Lithium Ion Battery - Rechargeable
Product Parameters
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
2600mAh |
Standard discharge（0.2C C5A) after Standard charge |
|
Minimum |
2550mAh |
|||
|
2 |
Nominal Voltage |
7.4V |
Mean Operation Voltage |
|
|
3 |
Voltage at end ofDischarge |
5.8V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage |
8.4±0.03V |
|
|
|
5 |
Internal Impedance |
≤180mΩ |
Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
|
6 |
Standard charge |
Constant Current 0.2C5AConstant Voltage 8.4V0.01 C5A cut-off |
Charge time : Approx 6h |
|
|
7 |
Standard discharge |
Constant current 0.2 C5Aend voltage5.8V |
|
|
|
8 |
Fast charge |
Constant Current 1.0C5AConstant Voltage 8.4V0.01 C5A cut-off |
Charge time : Approx 2.5h |
|
