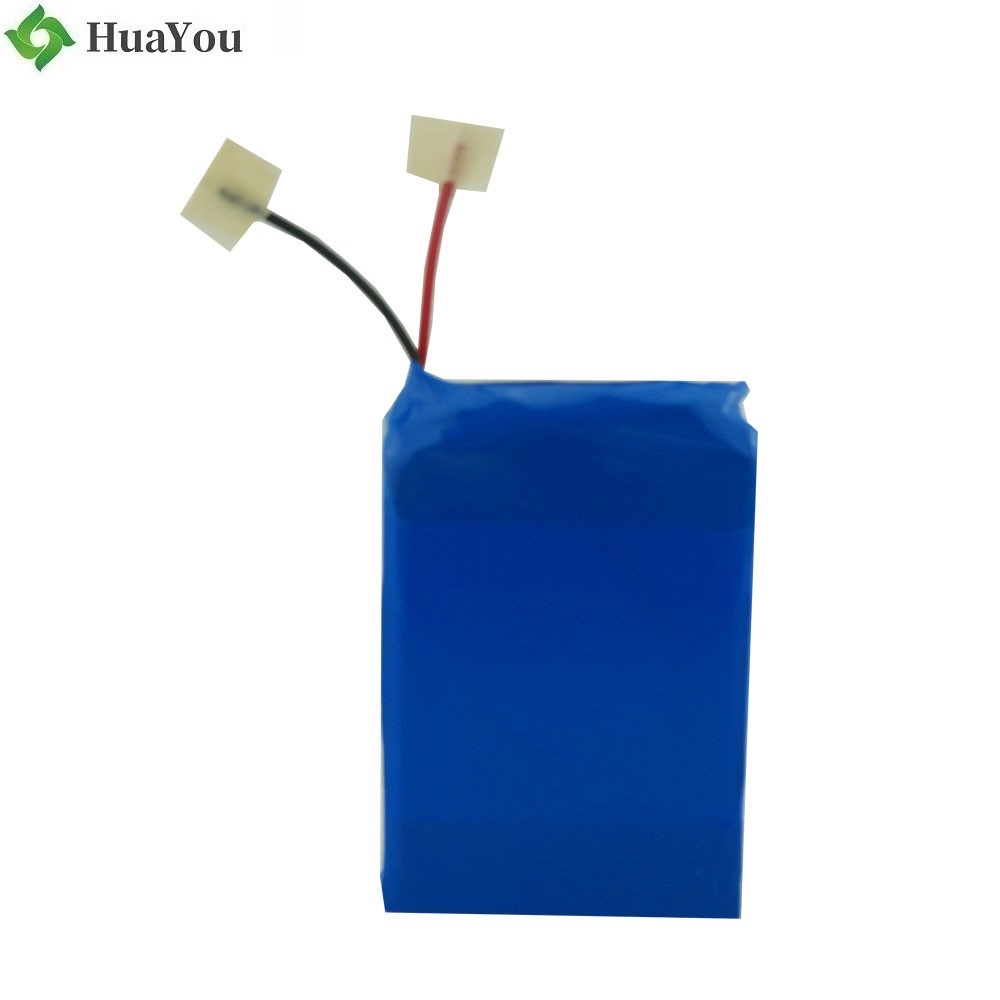

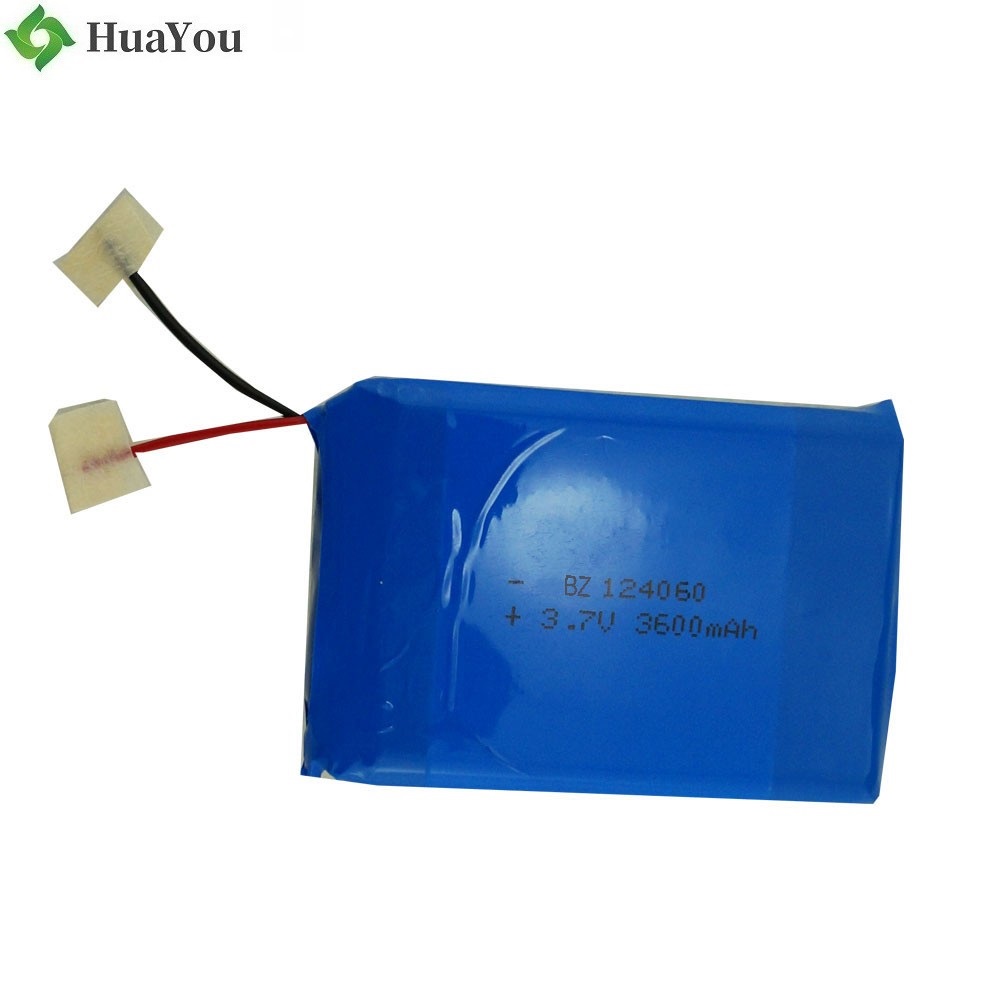

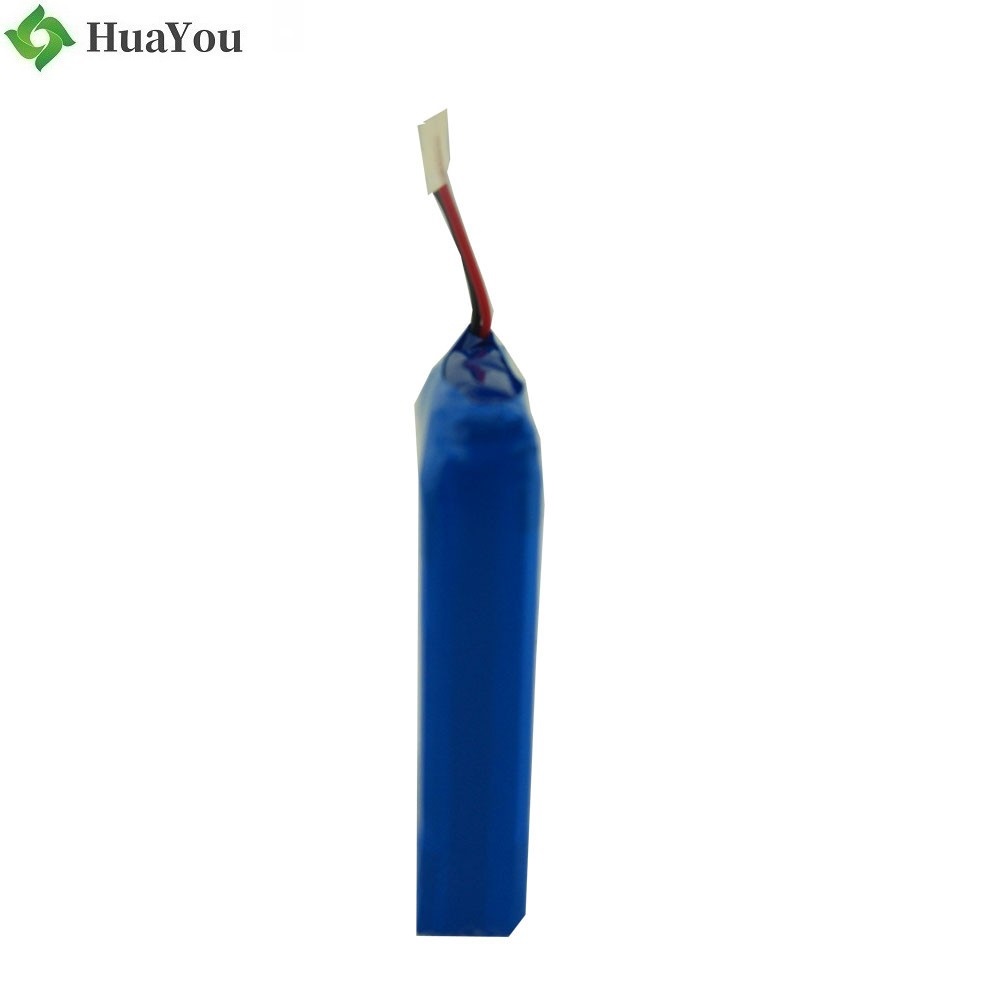

China Lithium Cells Supplier Wholesale Cheap Li-polymer Battery HY 124060 3600mah 3.7V Lipo Battery Pack

$5.20
In stock
SKU
HY 124060 3600mah 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

  • Place of Origin: Guangdong, China
  • Brand Name: HY
  • Model Number: 124060
  • Type: Li-polymer
  • Nominal Voltage: 3.7V
  • Size: 12*40*62mm
  • Nominal Capacity: 3600mAh
  • Cycle life: 500 Times
  • Certificate: CE/RoHS/UN38.3/MSDS/FCC
  • Weight: 65g
  • Warranty: 12 Months
  • Battery type: Li Polymer Battery Cells
  • Model: 124060
  • Voltage: 3.7V
  • Capacity: 3600mah
  • Application: electronic equipment
  • Charge current: 0.2C~1C

Li-Ion 18650 Battery

3600mah Lipo Battery Pack

3.7V Lipo Battery Pack

Lipo Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

3650mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

3600mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤70mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max62mm

Width: max40mm
Thickness: max12mm

Initial  Dimension
