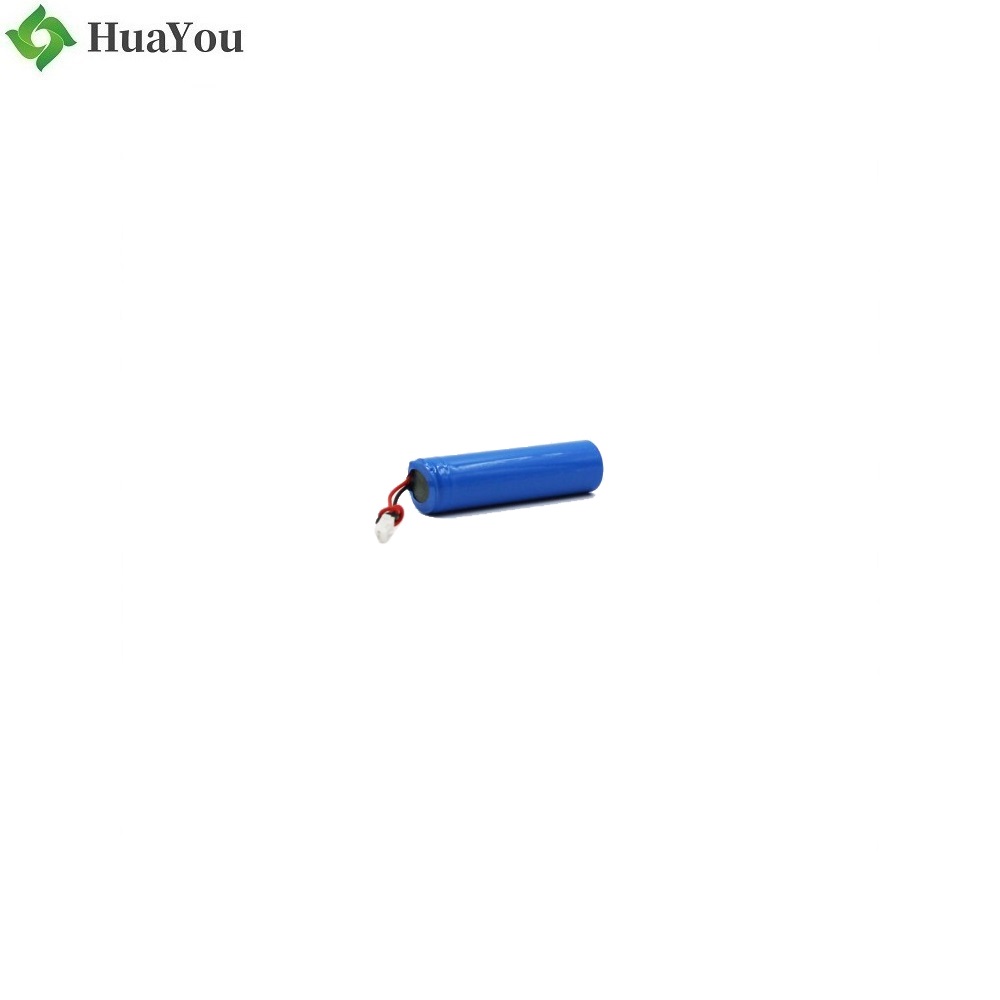

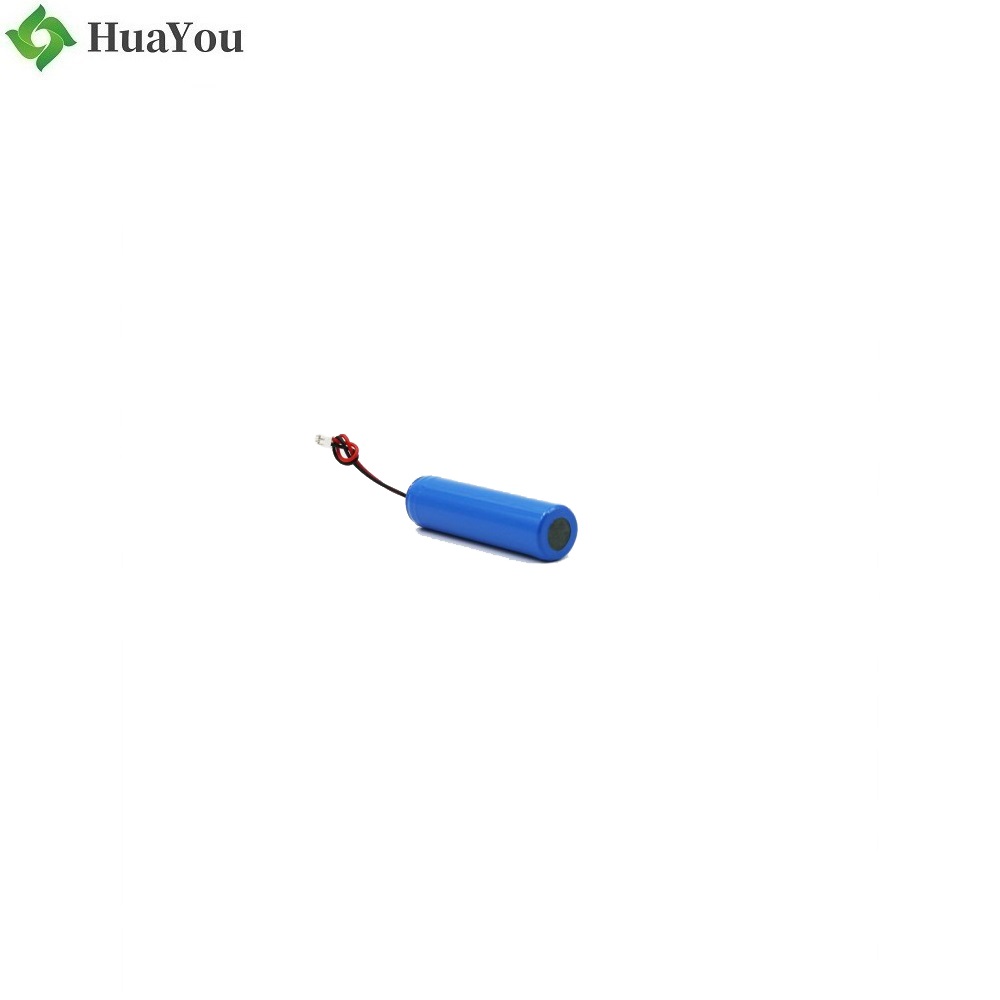

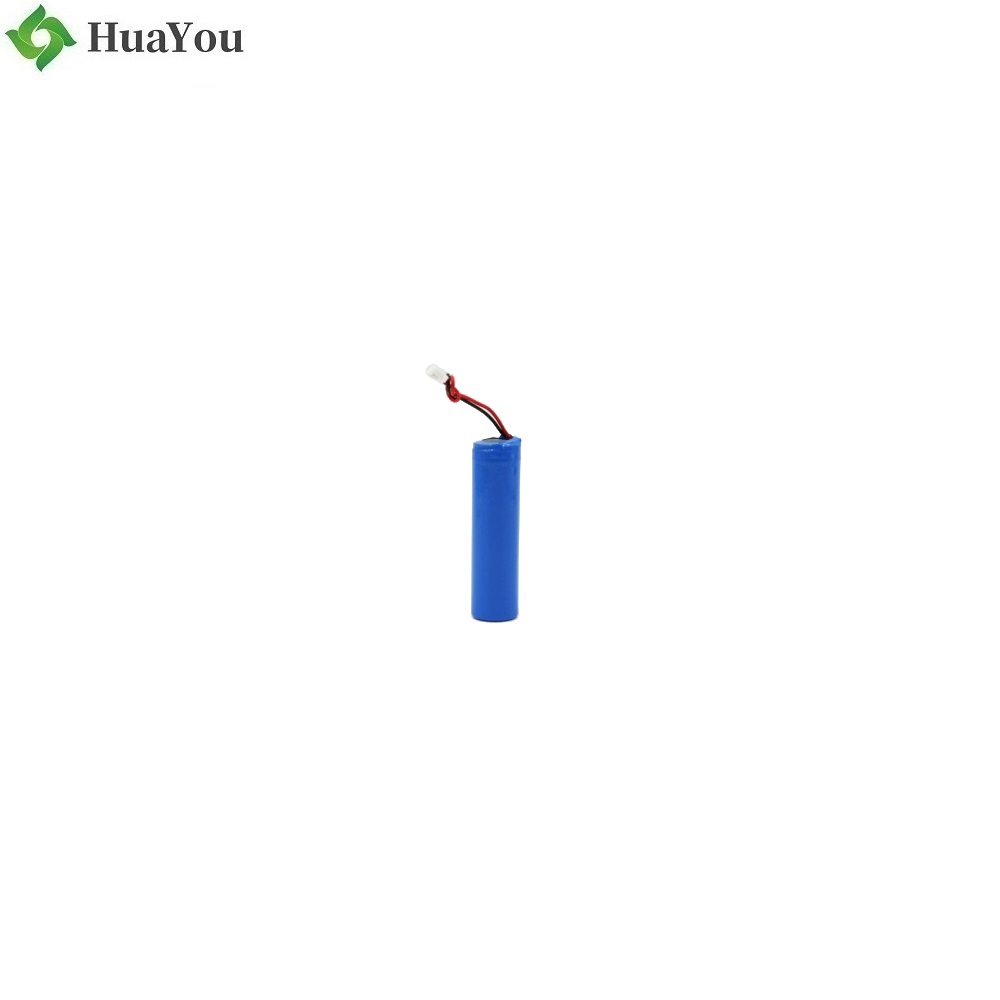

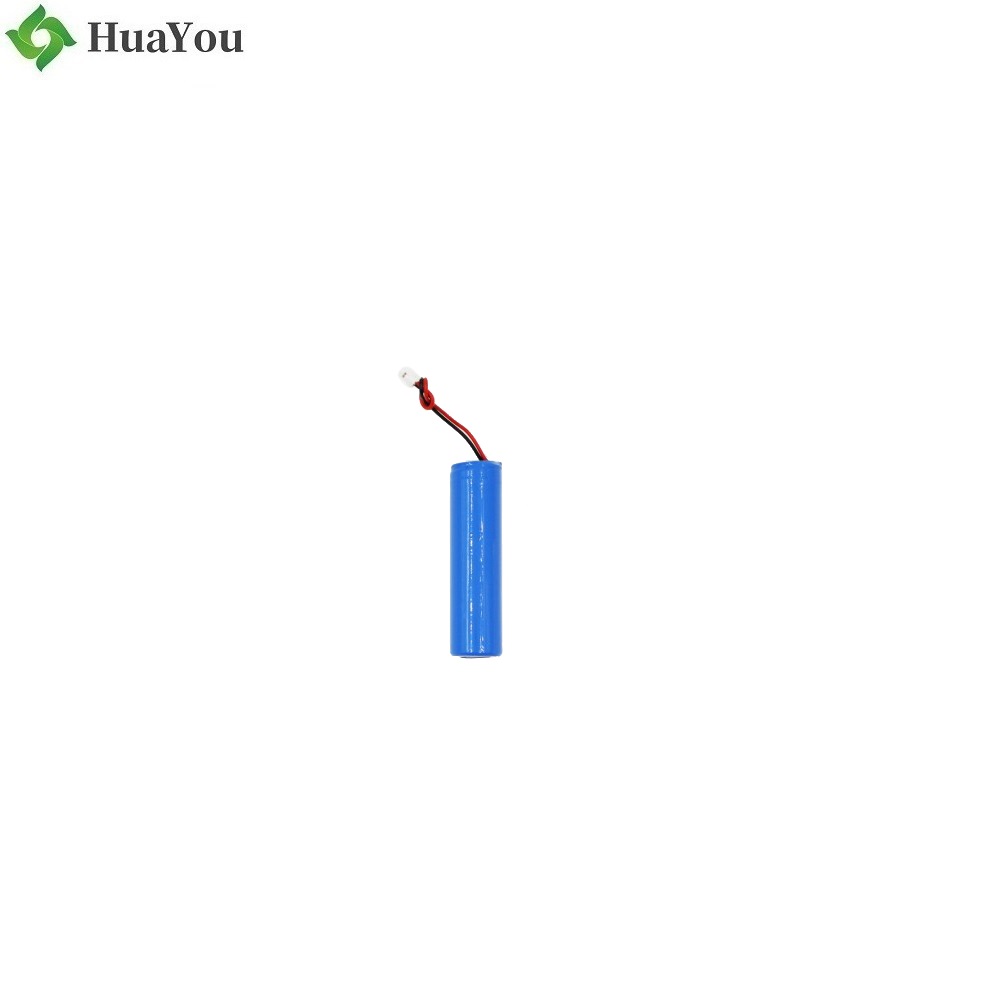

China Rechargeable Battery Supplier Customize 18650 Batteries HY 18650 2600mAh 3.7V Cylindrical Li-Ion Battery With UN38.3 Certification
$2.60
In stock
SKU
HY 18650 2600mAh 3.7V
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !
- Type: Li-Ion
- Nominal Voltage: 3.7V
- Nominal Capacity: 2600mAh
- product name: li ion battery cell
- Norminal Voltage: 3.7v
- Charge Upper Limit Voltage: 4.25±0.025V/Cell(selectable)
- Cycle life: 500 Times
- Battery PCB Protection: Available
- Battery type: li ion battery cell
- Warranty: 12 Months
Product Parameters
|
Item |
Specification |
|
Model |
18650 |
|
Nominal Capacity(0.2CA) |
2000mAh~2600 mAh |
|
Nominal Voltage |
3.70V |
|
Charging Voltage |
4.2V |
|
Discharge Cut-off Voltage |
2.75V |
|
Max. Charge Current |
2 CA |
|
Max. Discharge Current |
40A |
|
Cell Dimension |
Diameter 18±0.2 mm Height 65±0.2 mm |
|
Cell Weight(Approx.) |
50g |
|
Initial internal impedance Max, at 1000Hz. |
≤10 mΩ (Charged) |
|
Charging Current (CC/CV) |
Rapid charge :1CA×3.5hrs Standard charge :0.5 CA×4hrs. |
|
Operating Temperature |
Charge :0℃~60℃(32oF~113oF) Discharge :-20℃~75℃(-4oF~140oF) Storage :-20℃~45℃(-4oF~113oF) |
