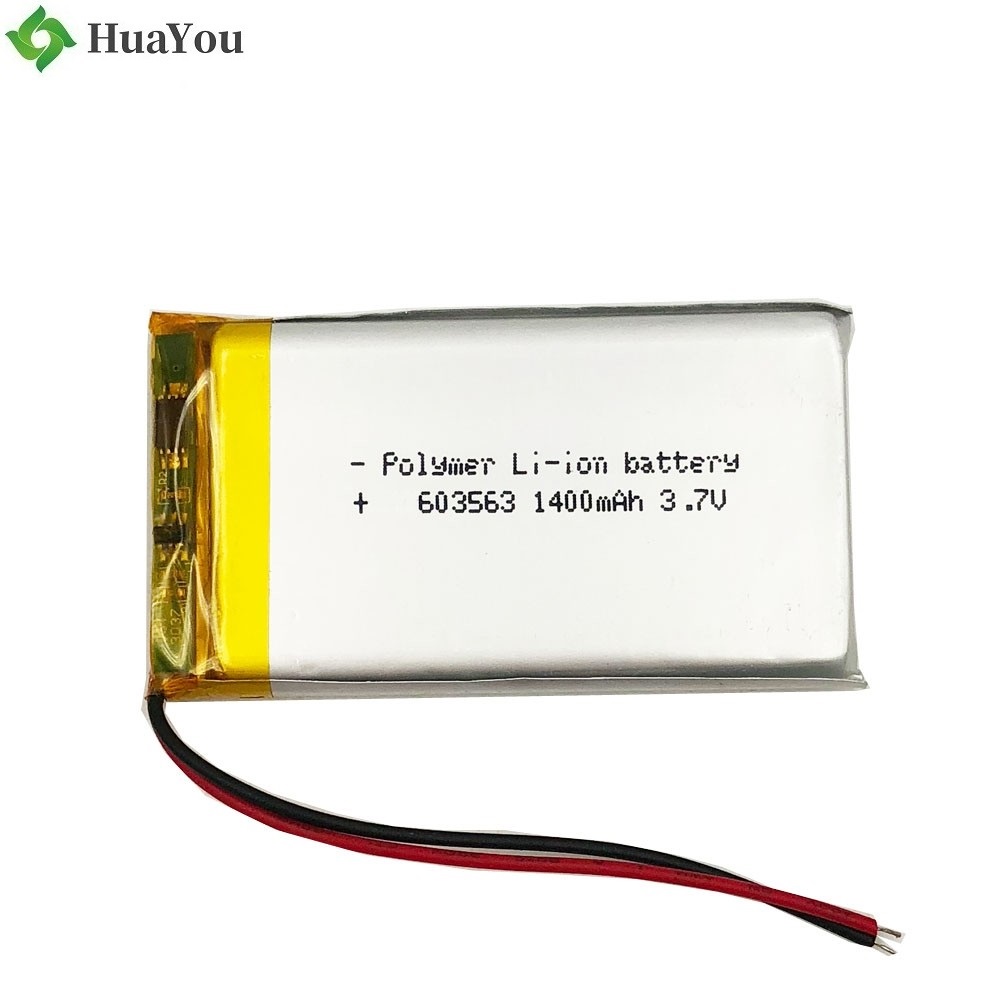

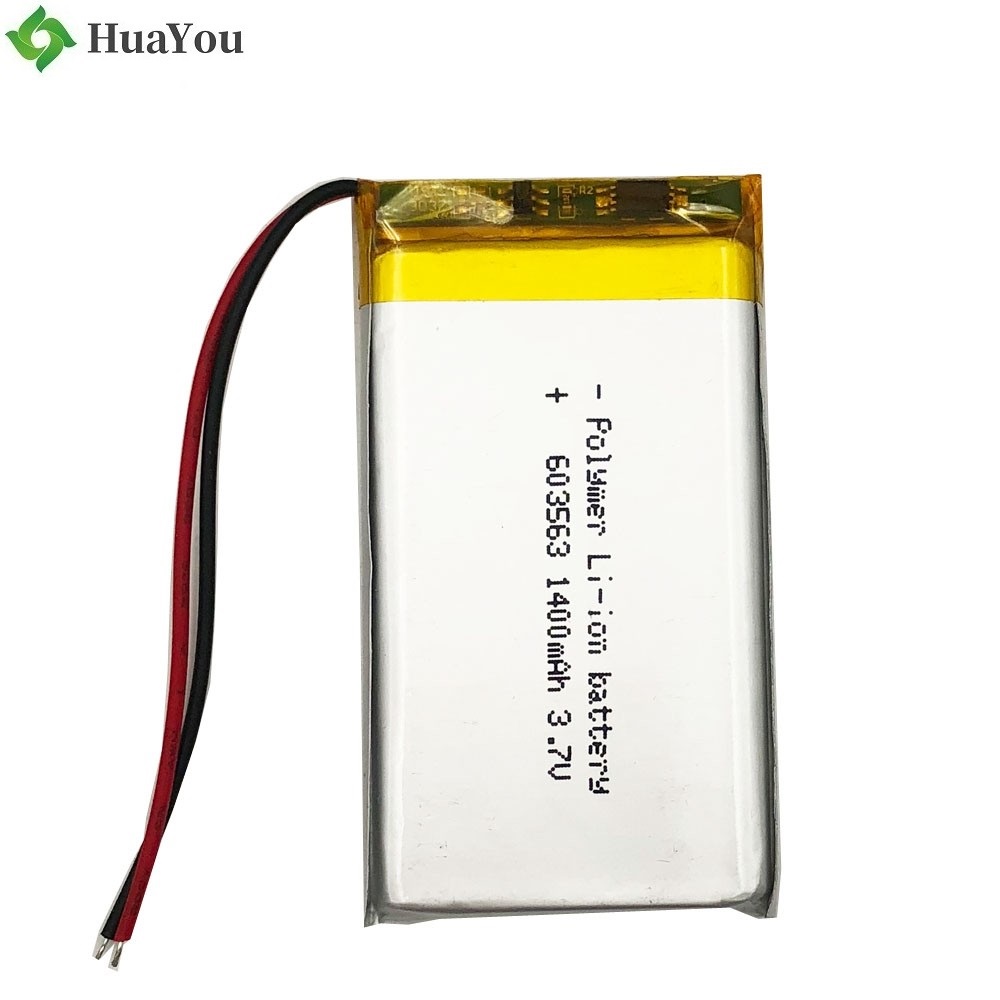

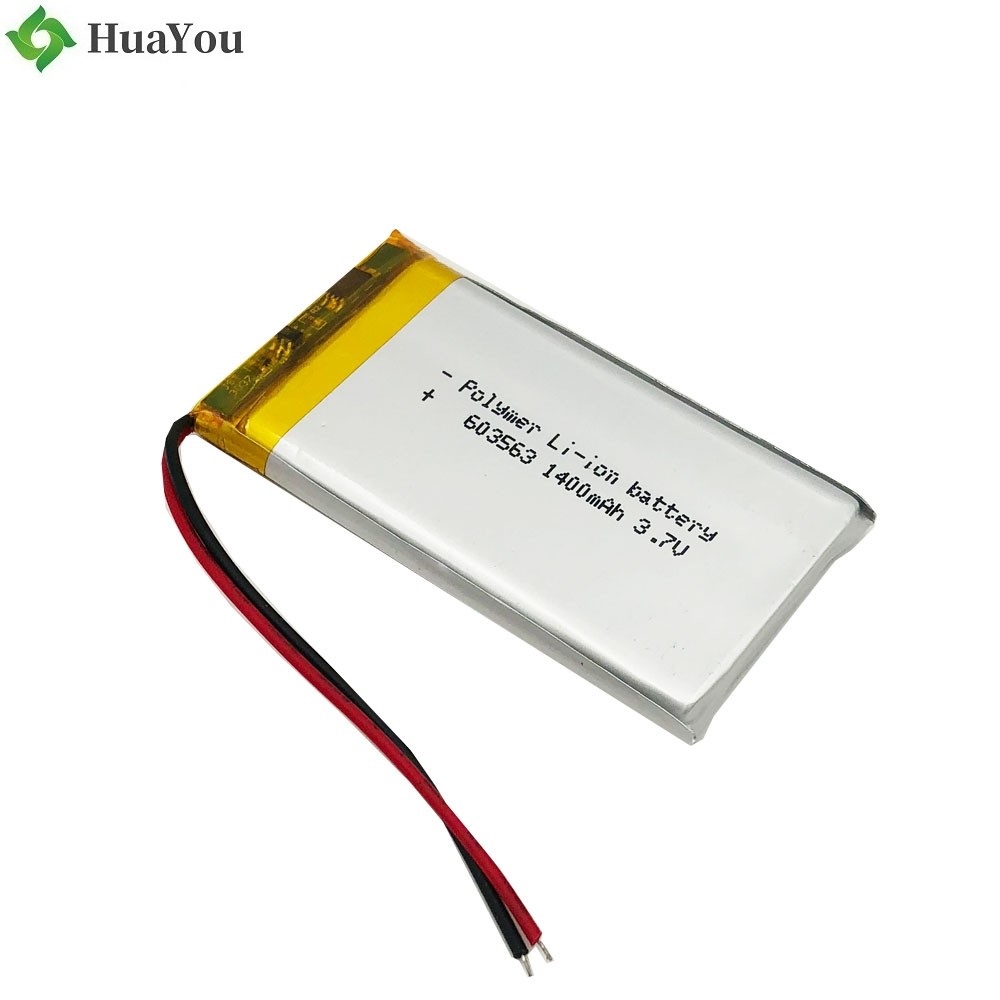

Chinese Lithium Battery Manufacturer ODM Rechargeable Battery for Medical Device HY 603563 1400mAh 3.7V Lipo Battery
$1.90
In stock
SKU
HY 603563 1400mAh 3.7V
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !
Place of Origin: Guangdong, China (Mainland)
Brand Name: HY
Model Number: 603563
Type: Li-polymer
Nominal Voltage: 3.7V
Size: 6*35*65mm
Nominal Capacity: 1400mAh
Product name: 603563
Warranty: 1 Year
Weight: 46g
Cycle life: 500 Times
Capacity: 1400mah
Voltage: 3.7V
Application: Battery for Medical Device
Certificate: CE/RoHS/UN38.3/MSDS
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
Product Parameters
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 1450mAh | Standard discharge(0.2C C5A) after Standard charge |
| Minimum | 1400mAh | |||
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
| 3 | Voltage at end of | 3.0V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 4.2±0.03V | ||
| 5 | Internal Impedance | ≤120mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 3.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage 3.0V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| less than 3 months: -20~40℃ | at the shipment state | |||
| 14 | Pack Dimension |
High:max65mm Width: max35mm Thickness: max6mm |
Initial Dimension | |
