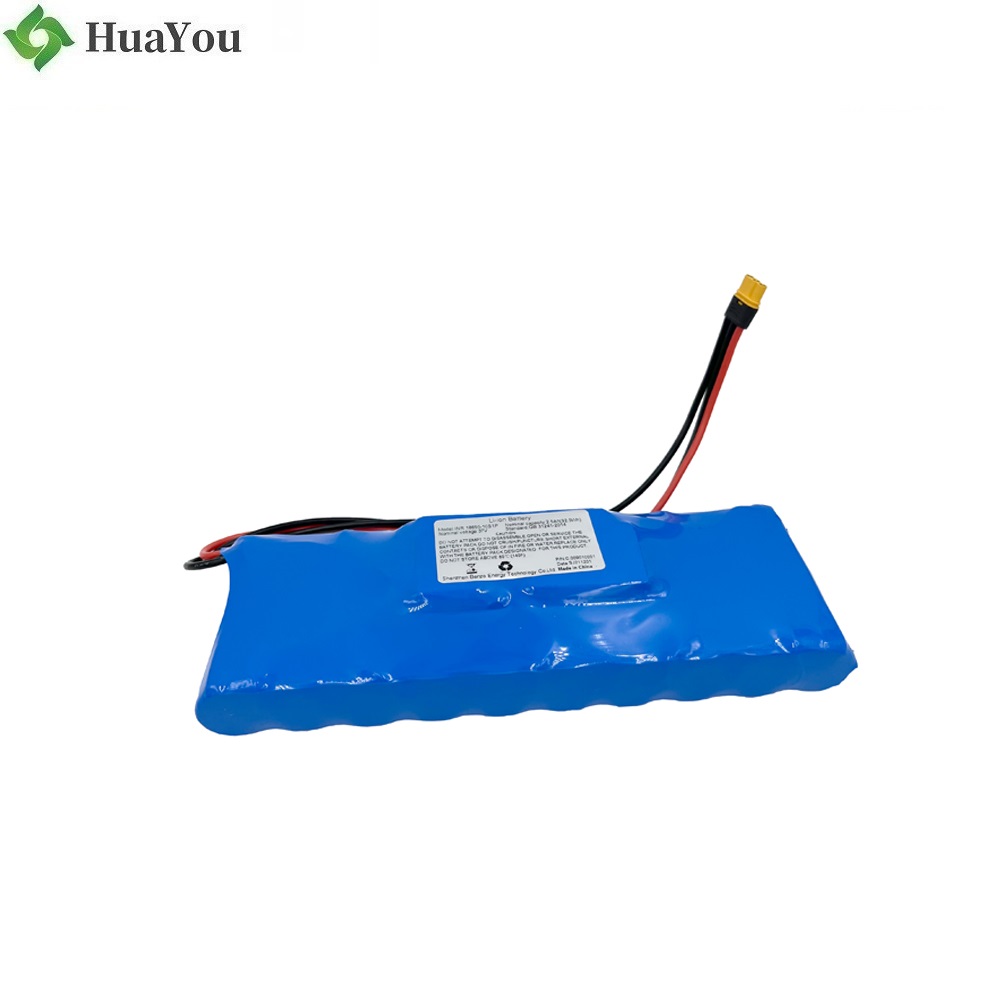

Li-ion Cell Manufacturer Supply Balance Car Battery HY 18650-10S1P 37V 2500mAh Cylindrical Battery Pack

$72.00
In stock
SKU
HY 18650-10S1P 37V 2500mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for order li-ion battery !

    Place of Origin: Guangdong, China
    Brand Name: UFX
    Model Number: 18650-10S
    Type: Li-polymer
    Nominal Voltage: 37V
    Size: 27*67*185mm
    Nominal Capacity: 2500mAh
    Product name: UFX 18650-10S Li-ion Battery
    Warranty: 1 Year
    Weight: 540g
    Cycle life: 500 Times
    Application: Balance Car Battery
    Certificate: UN38.3/CE/MSDS/ROHS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C


Li-Ion 18650 Battery

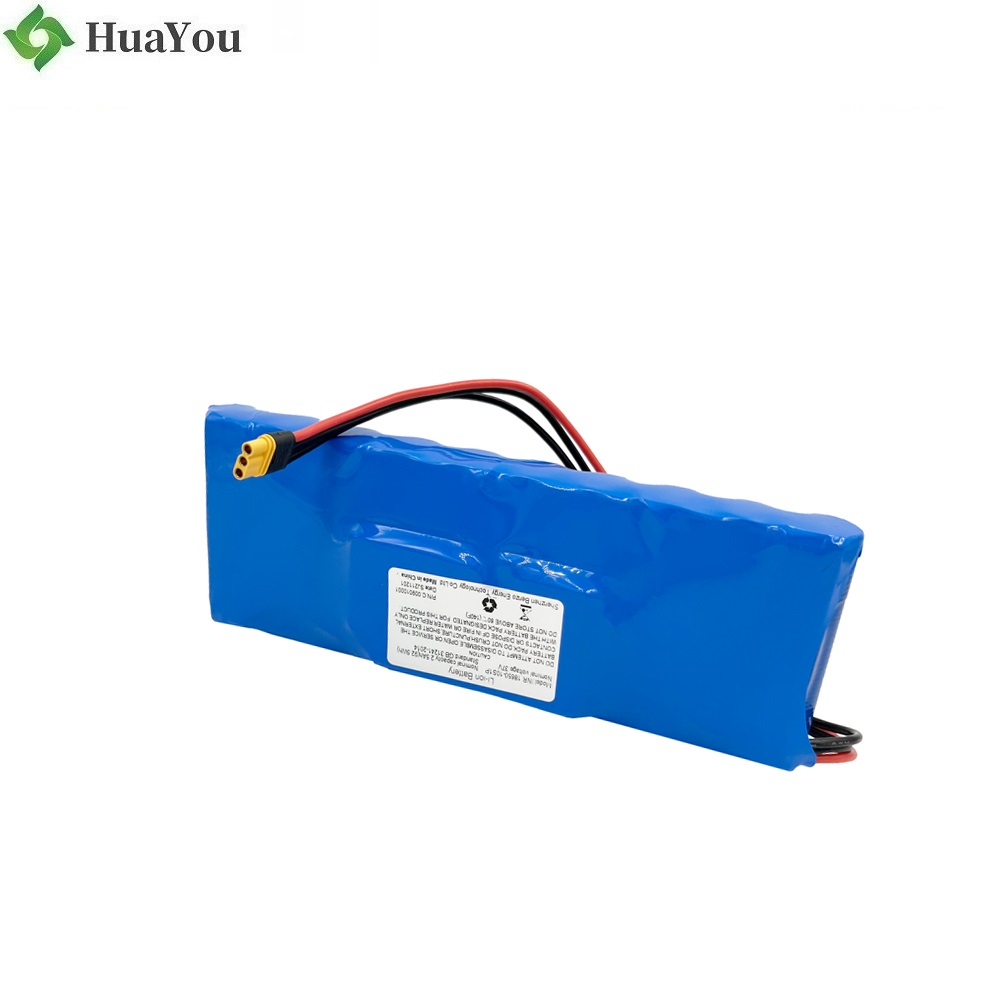

Li-ion Cell Manufacturer Supply 37V Battery Pack2500mAh Balance Car Battery

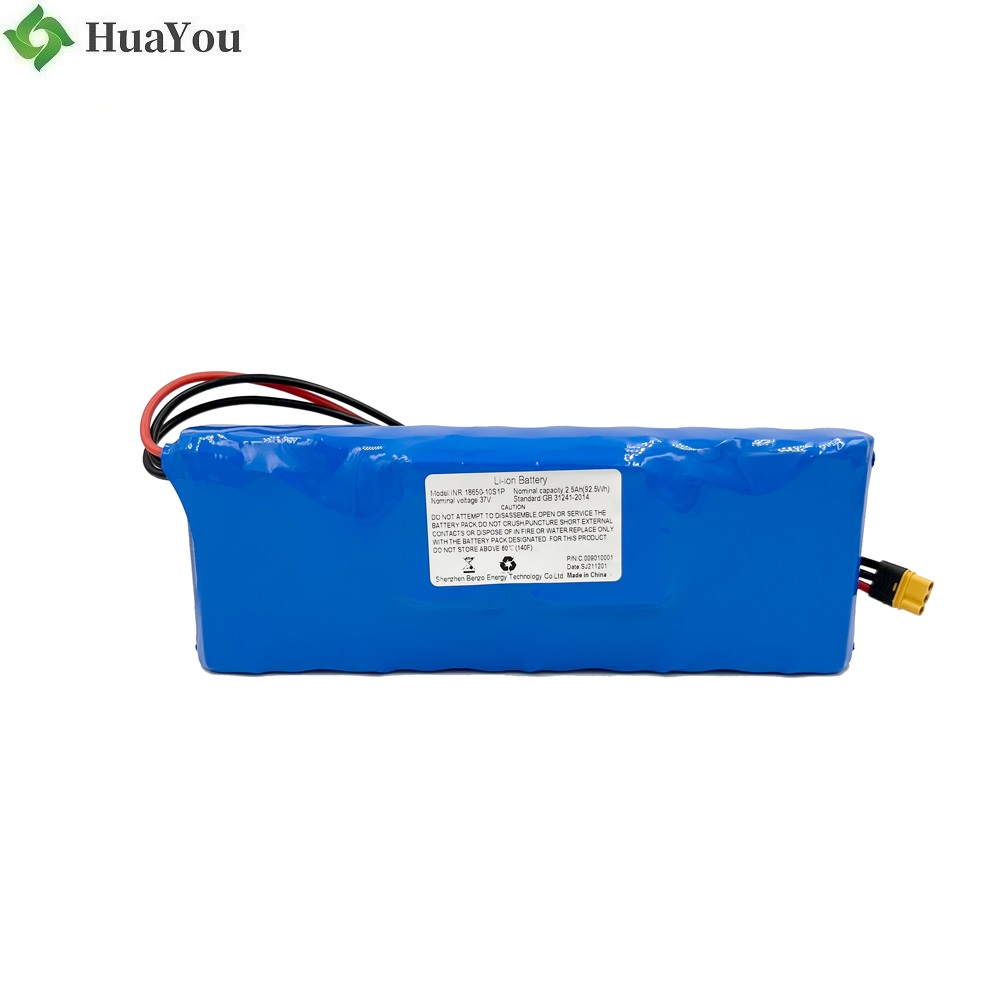

18650-10S1P 37V 2500mAh Cylindrical Battery Pack

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

2530mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

2500mAh

2

Nominal Voltage

37V

Mean Operation Voltage

3

Voltage at end of

30V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

42±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 42V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 30V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 42V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 30V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max185mm

Width: max67mm
Thickness: max27mm

Initial  Dimension
