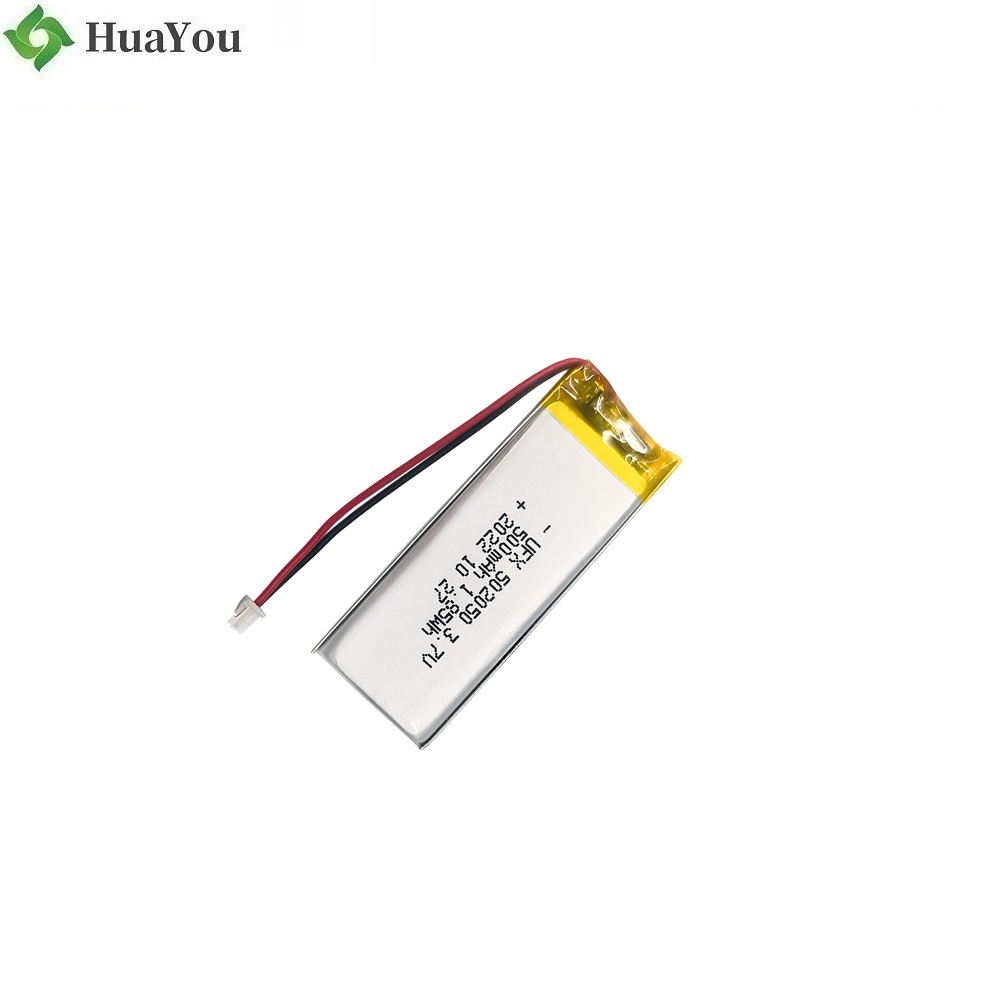

Li-polymer Cell Factory Wholesale Bluetooth Earphone Battery UFX 502050 3.7V 500mAh Rechargeable Battery

$1.25
In stock
SKU
UFX 502050

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China (Mainland)
  •     Brand Name: HY
  •     Model Number: 502050
  •     Type: Li-polymer
  •     Nominal Voltage: 3.7V
  •     Size: 5*20*52mm
  •     Nominal Capacity: 500mAh
  •     Product name: HY 502050 Li-ion Battery
  •     Warranty: 1 Year
  •     Weight: 10g
  •     Cycle life: 500 Times
  •     Capacity: 500mah
  •     Voltage: 3.7V
  •     Application:Bluetooth Earphone Battery
  •     Certificate: CE/RoHS/UN38.3/MSDS
  •     Payment: Paypal.TT.Escrow.Western Union
  •     Max charge current: 1C

Rechargeable Lithium Polymer Batteries

High Quality Bluetooth Earphone Battery

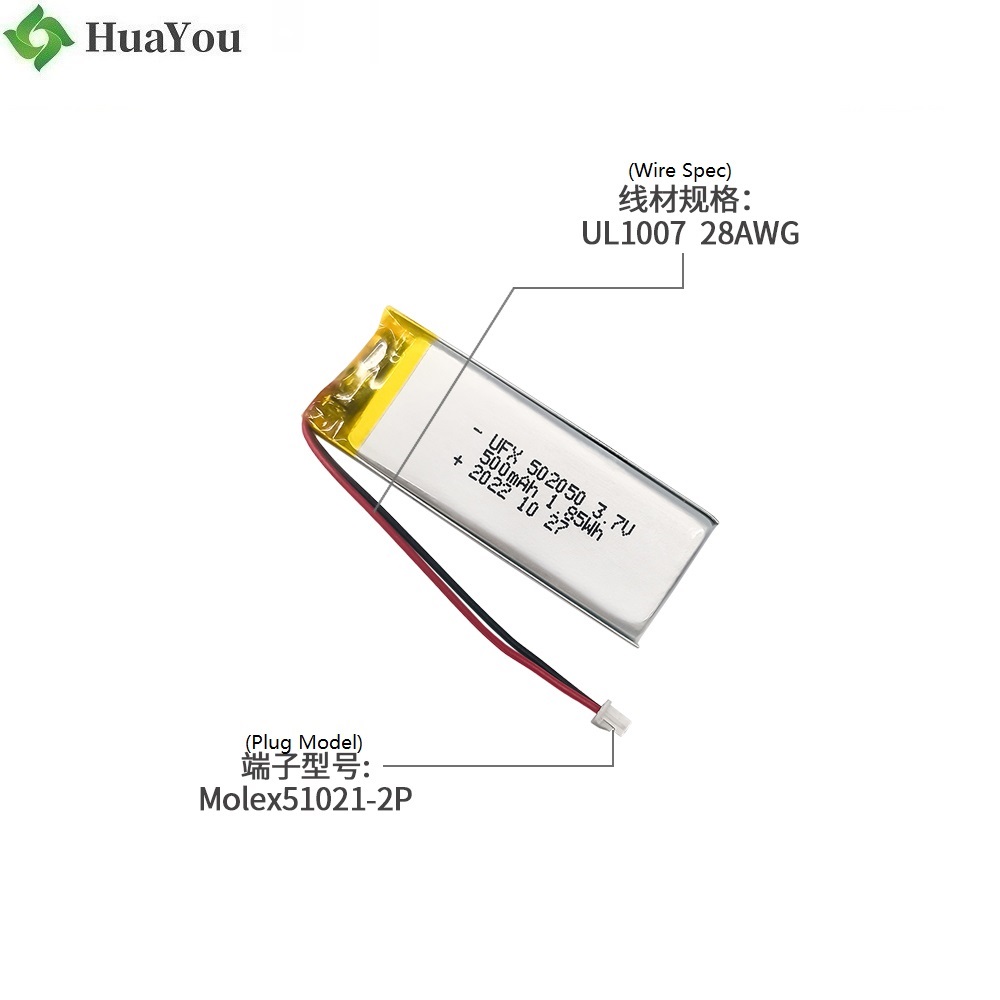

Execllent Li-polymer Cell Factory

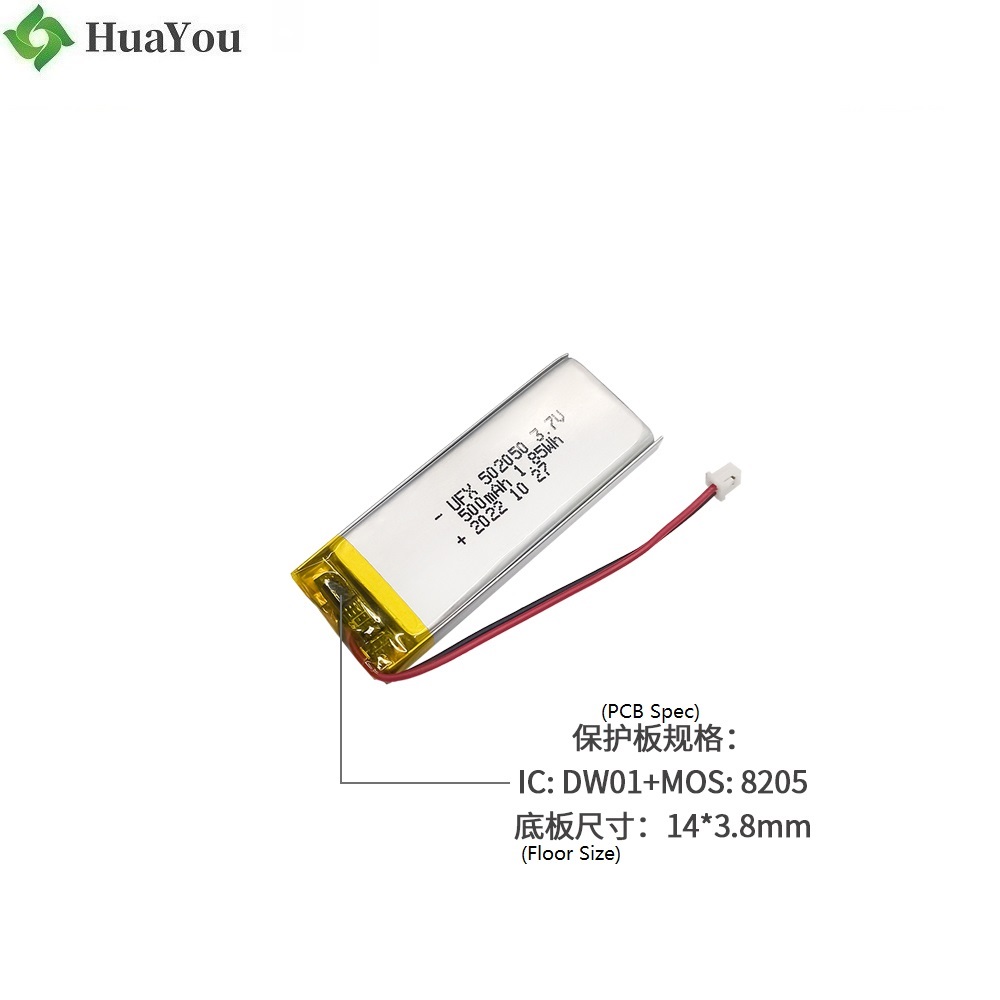

502050 3.7V 500mAh Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

520mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

500mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤175mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1 C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max52mm

Width: max20mm
Thickness: max5mm

Initial  Dimension
