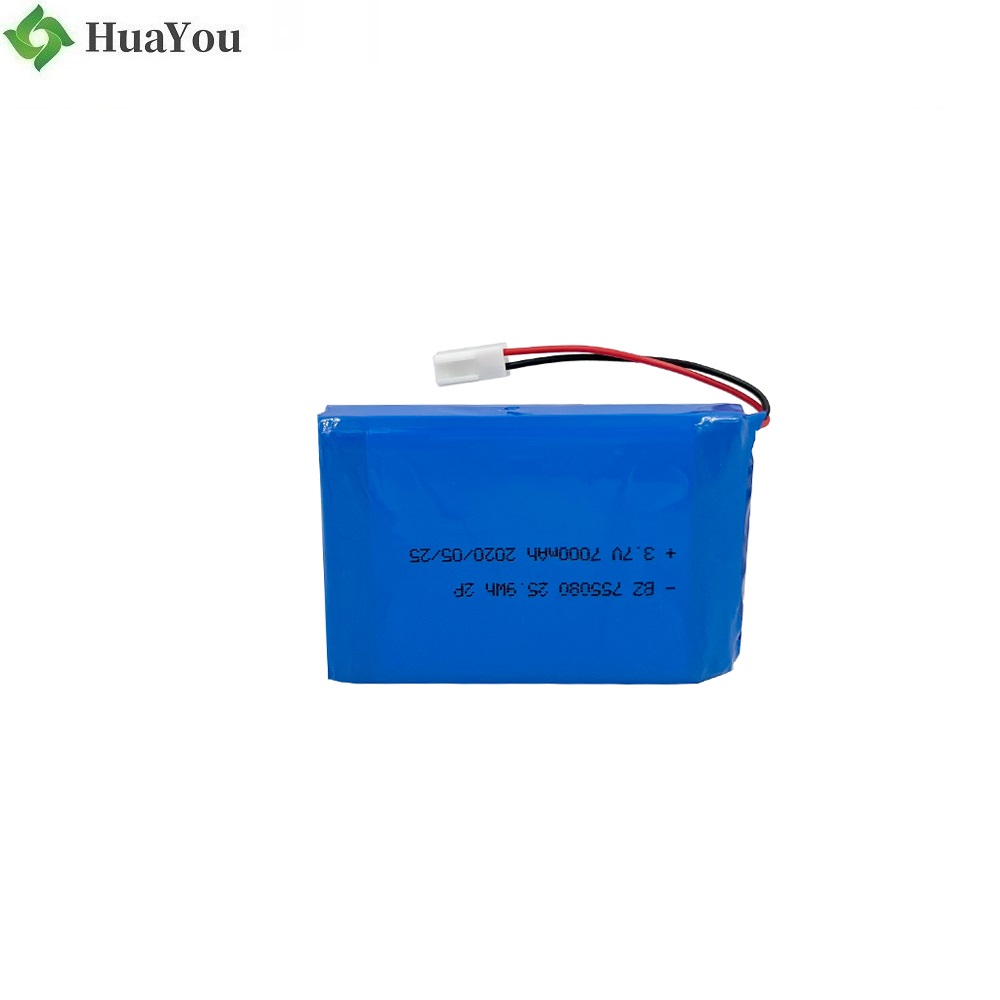

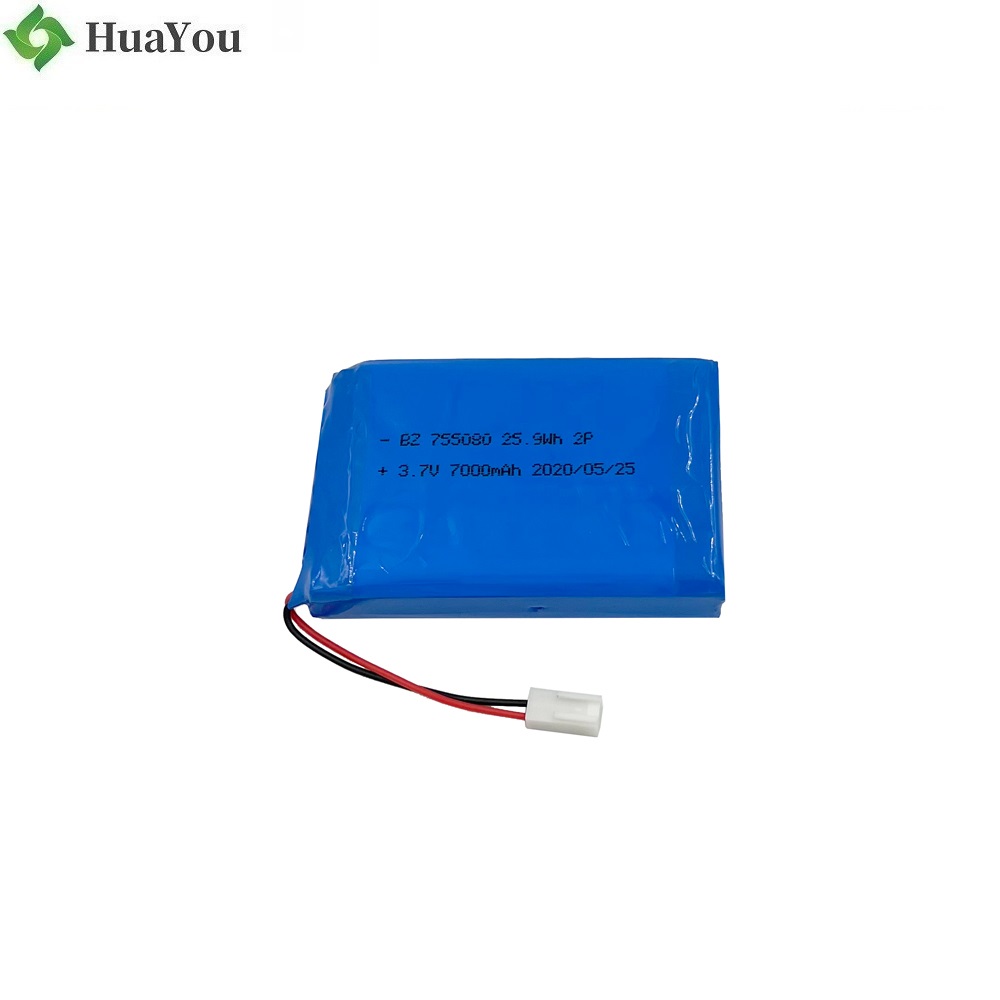

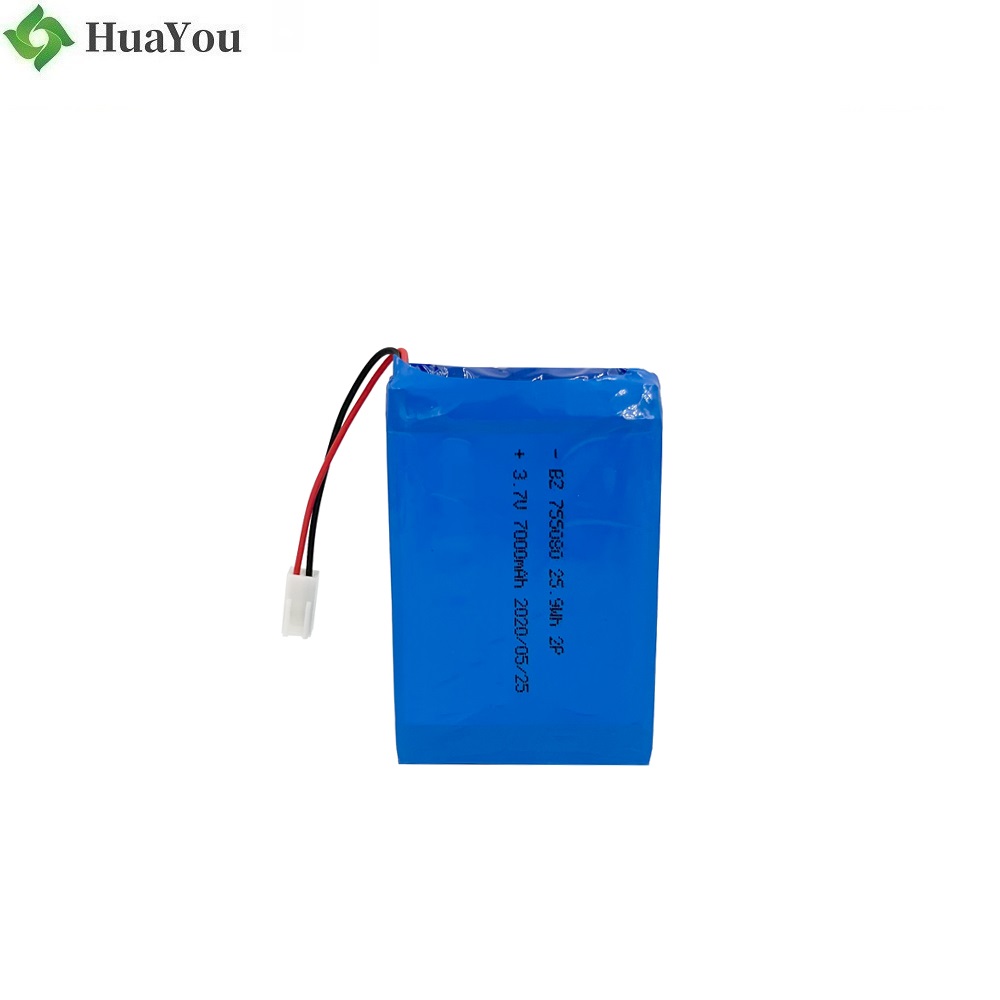

Lipo Cell Factory Supply Remote Control Car Toys Battery HY 755080-2P 3.7V 7000mAh Li-ion Battery Pack

$8.00
In stock
SKU
HY 755080-2P

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: HY
    Model Number: 755080-2P
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size:12*55*82mm
    Nominal Capacity: 7000mAh
    Product name: HY 755080-2P Li-ion Battery
    Warranty: 1 Year
    Weight: 140g
    Cycle life: 500 Times
    Application: Remote Control Car Toys
    Certificate: CE/RoHS/UN38.3/MSDS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

Li-Ion 18650 Battery

Lipo Cell Factory Supply Li-ion Battery Pack

7000mAh Remote Control Car Toys Battery

755080-2P 3.7V 7000mAh Li-ion Battery Pack

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

7050mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

7000mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤105mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max82mm

Width: max55mm
Thickness: max15mm

Initial  Dimension
