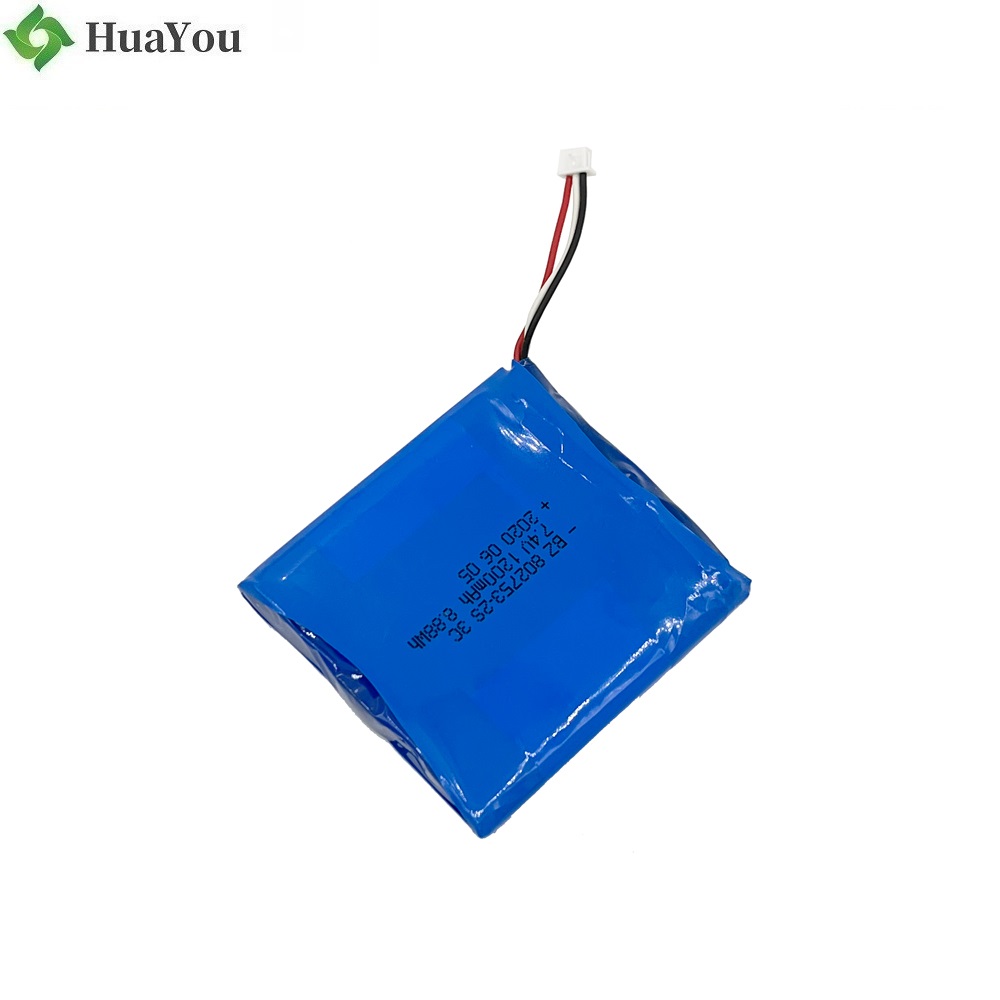

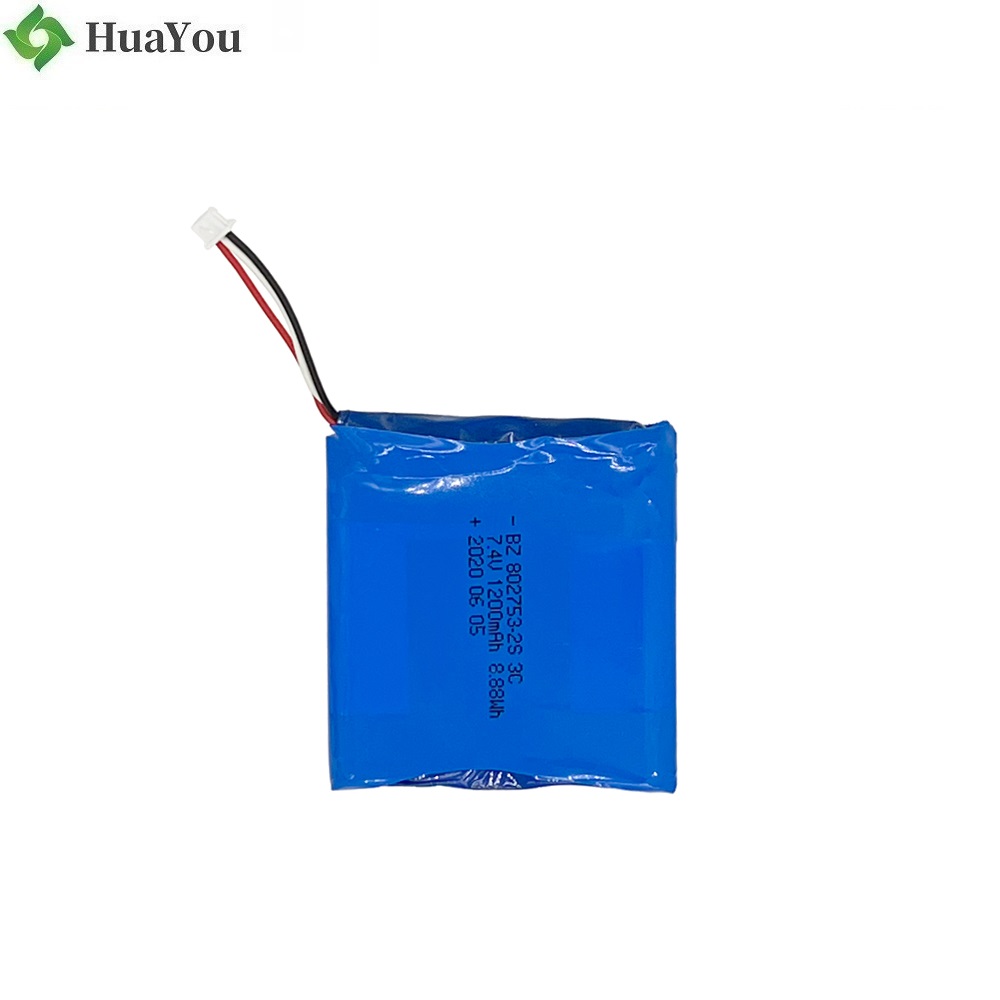

Professional Customize Electric Toy Rechargeable Battery HY 802753-2S 7.4V 1200mAh 3C Discharge Lipo Battery Pack

$3.50
In stock
SKU
HY 802753-2S 1200mAh 3C

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: HY
        Model Number: 802753-1P2S 3C
        Type: Li-polymer
        Nominal Voltage: 7.4V
        Size: 8*54*55mm
        Nominal Capacity: 1200mAh
        Product name: HY 802753-1P2S  3C Li-ion Battery
        Warranty: 1 Year
        Weight: 50g
        Cycle life: 500 Times
        Application:
    Electric Toy
        Certificate: CE/RoHS/UN38.3/MSDS/KC
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

Li-Ion 18650 Battery

Professional Customize 3C Battery Pack

7.4V Electric Toy Rechargeable Battery

454065-1P2S 7.4V 1300mAh 3C Rate Li802753-2S 7.4V 1200mAh 3C Discharge Lipo Battery Pack-ion Polymer Battery Pack

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1220mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1200mAh

2

Nominal Voltage

7.4V

Mean Operation Voltage

3

Voltage at end of

6.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

8.4±0.03V



5

Internal Impedance

≤150mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 8.4V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 6.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 8.4V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 6.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

3C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max55mm

Width: max54mm
Thickness: max8mm

Initial  Dimension
