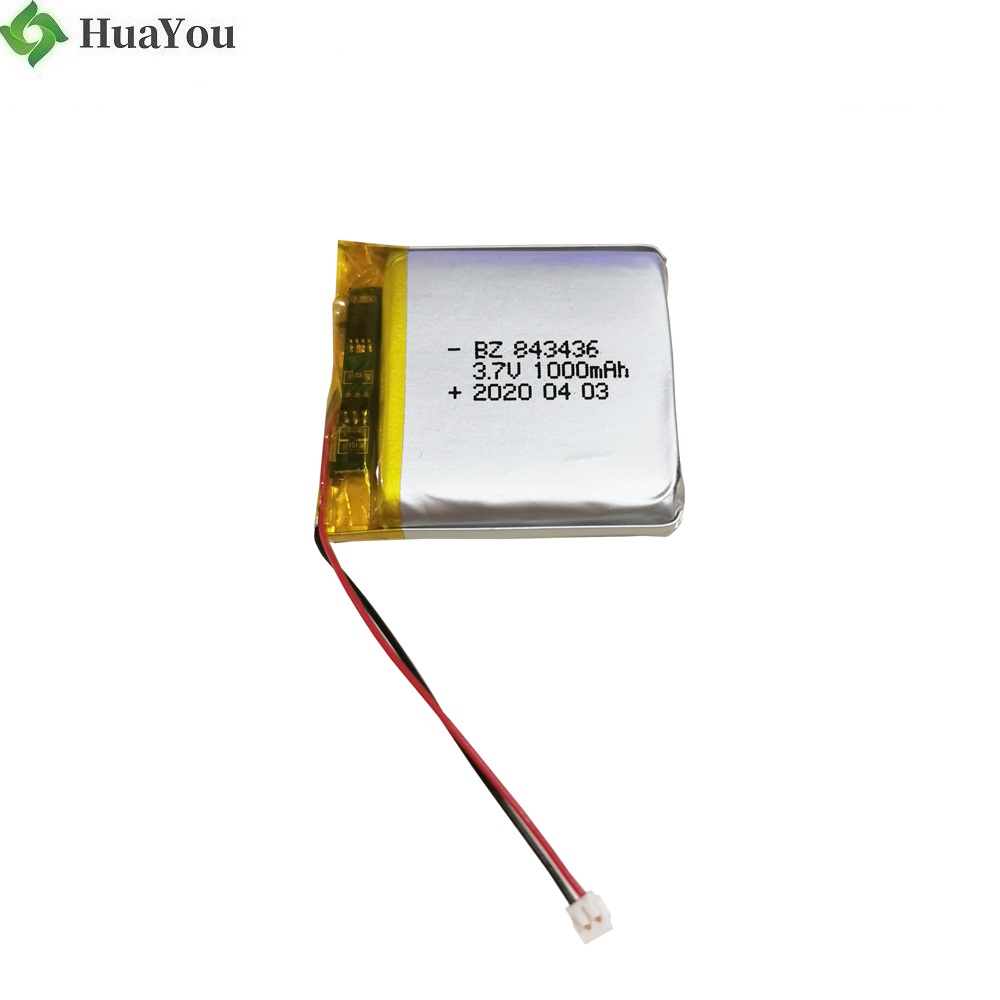

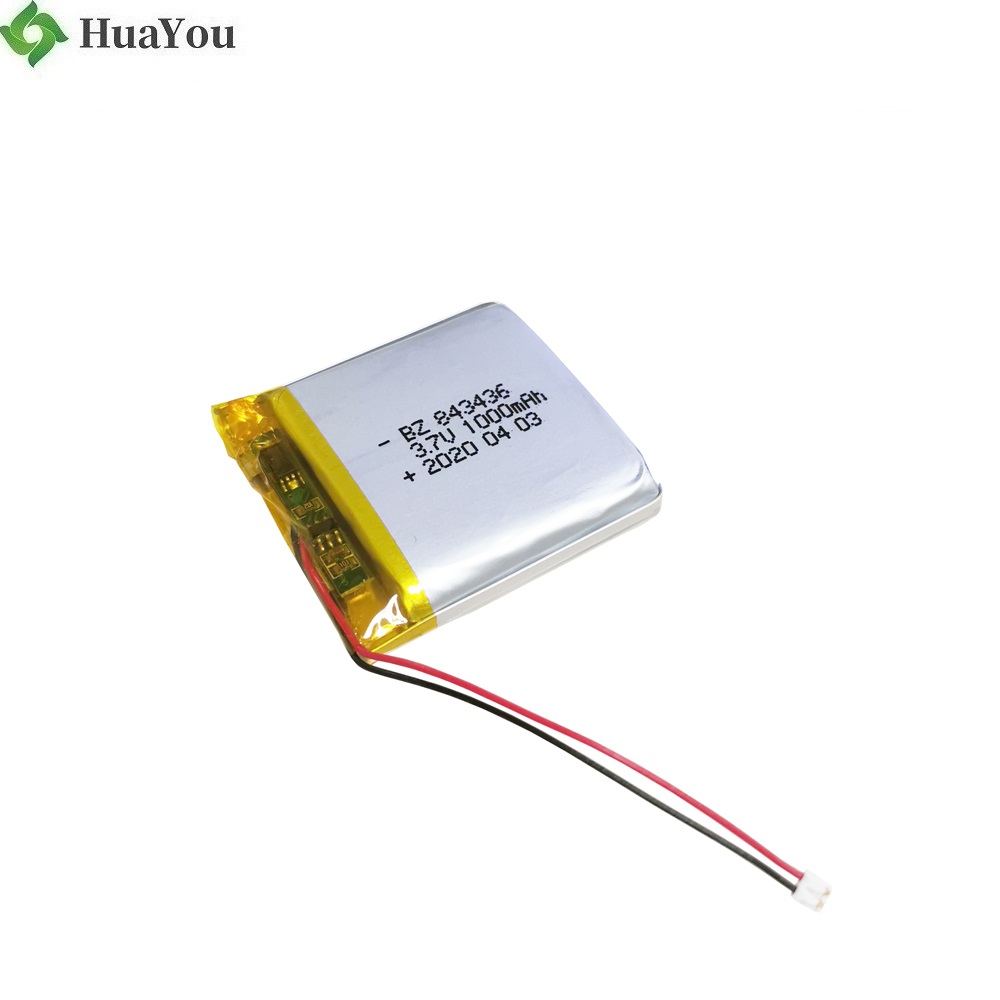

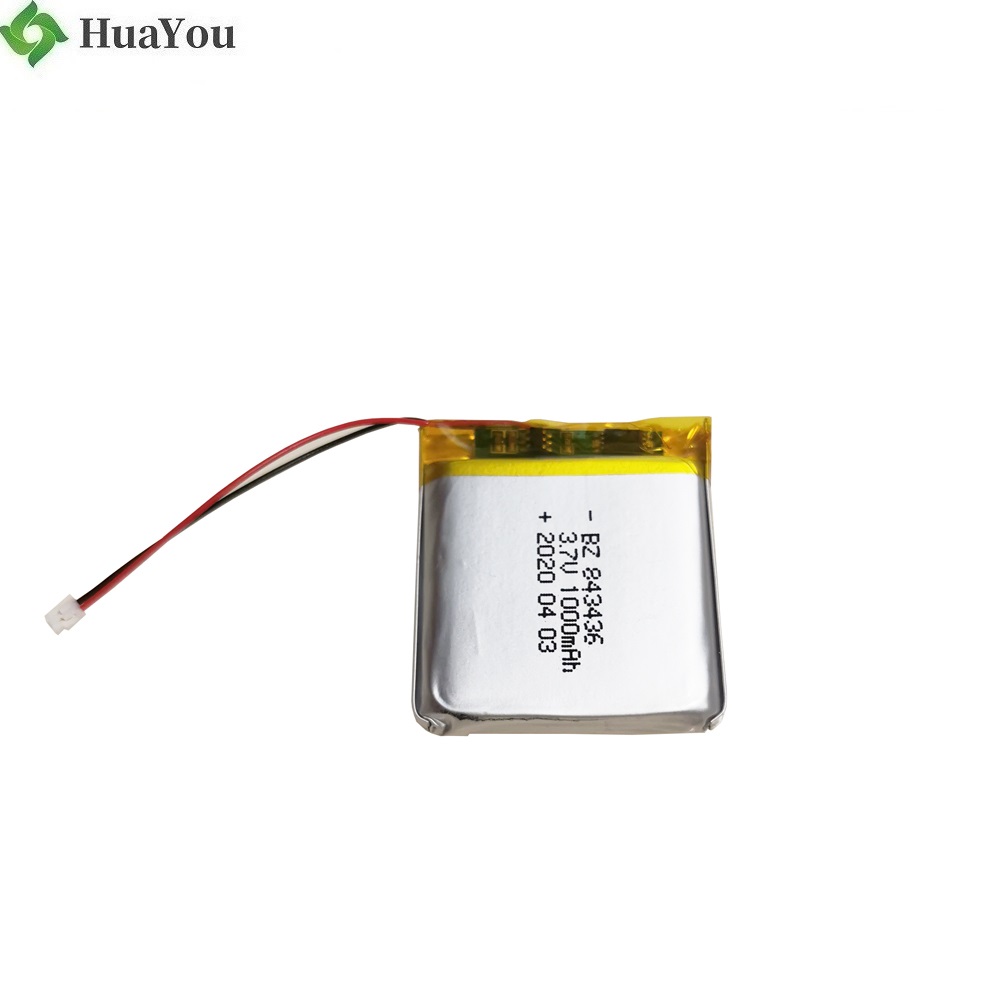

Wholesale Rechargeable Digital Camera Battery HY 843436 3.7V 1000mAh Li-ion Polymer Battery

$1.60
In stock
SKU
HY 843436 3.7V 1000mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: HY
        Model Number: 843436
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 8.4*34*38mm
        Nominal Capacity: 1000mAh
        Product name: HY 843436 Li-polymer Battery
        Warranty: 1 Year
        Weight: 19g
        Cycle life: 500 Times
        Application: Digital Camera Battery
        Certificate: CE/ROHS/MSDS/UN38.3
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

Li-Ion 18650 Battery

Wholesale Rechargeable 1000mAh Battery

3.7V Digital Camera Battery

843436 3.7V 1000mAh Li-ion Polymer Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1020mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1000mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max38mm

Width: max34mm
Thickness: max8.4mm

Initial  Dimension
