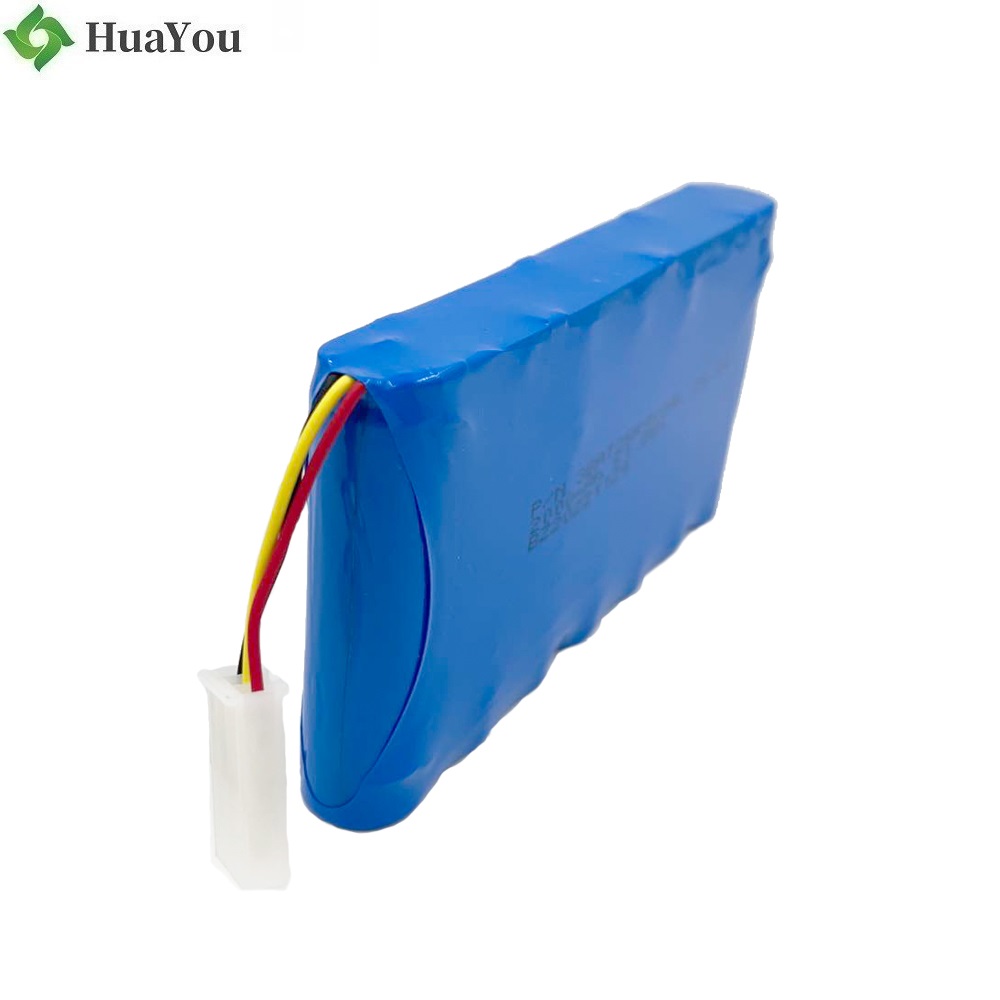

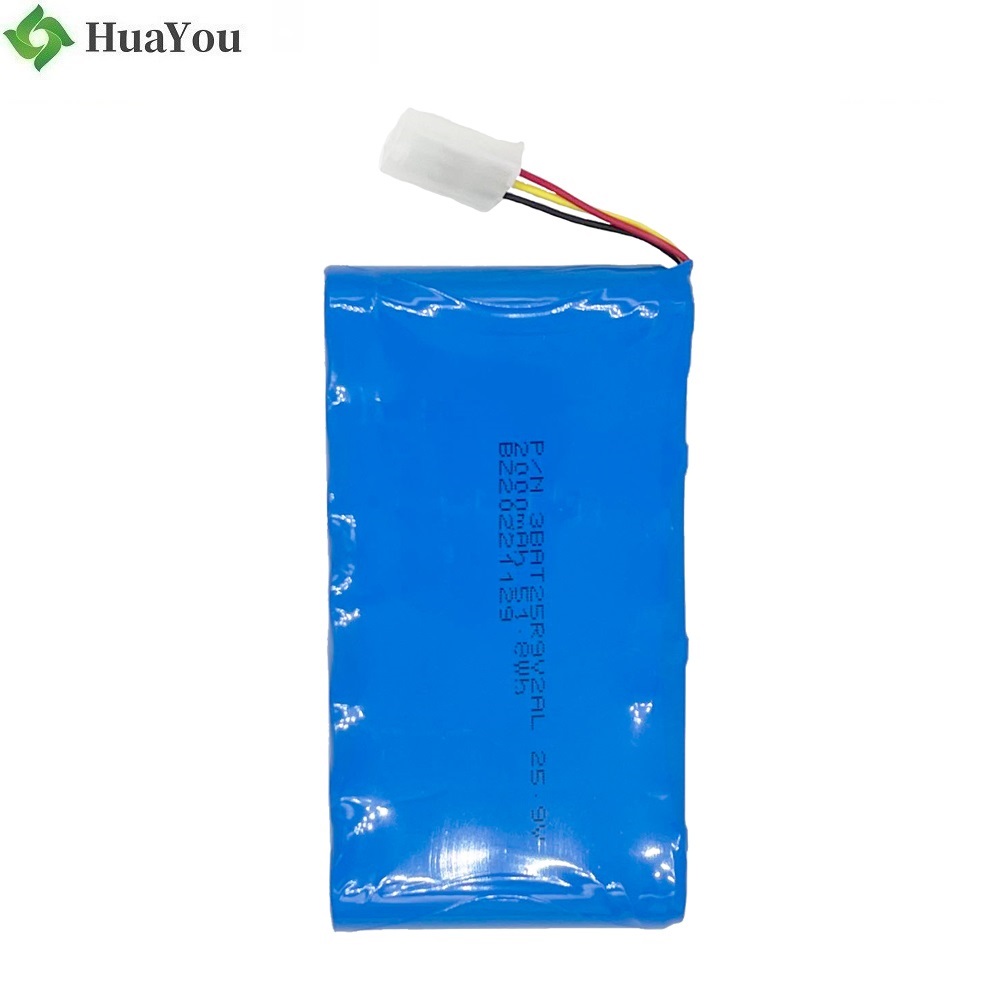

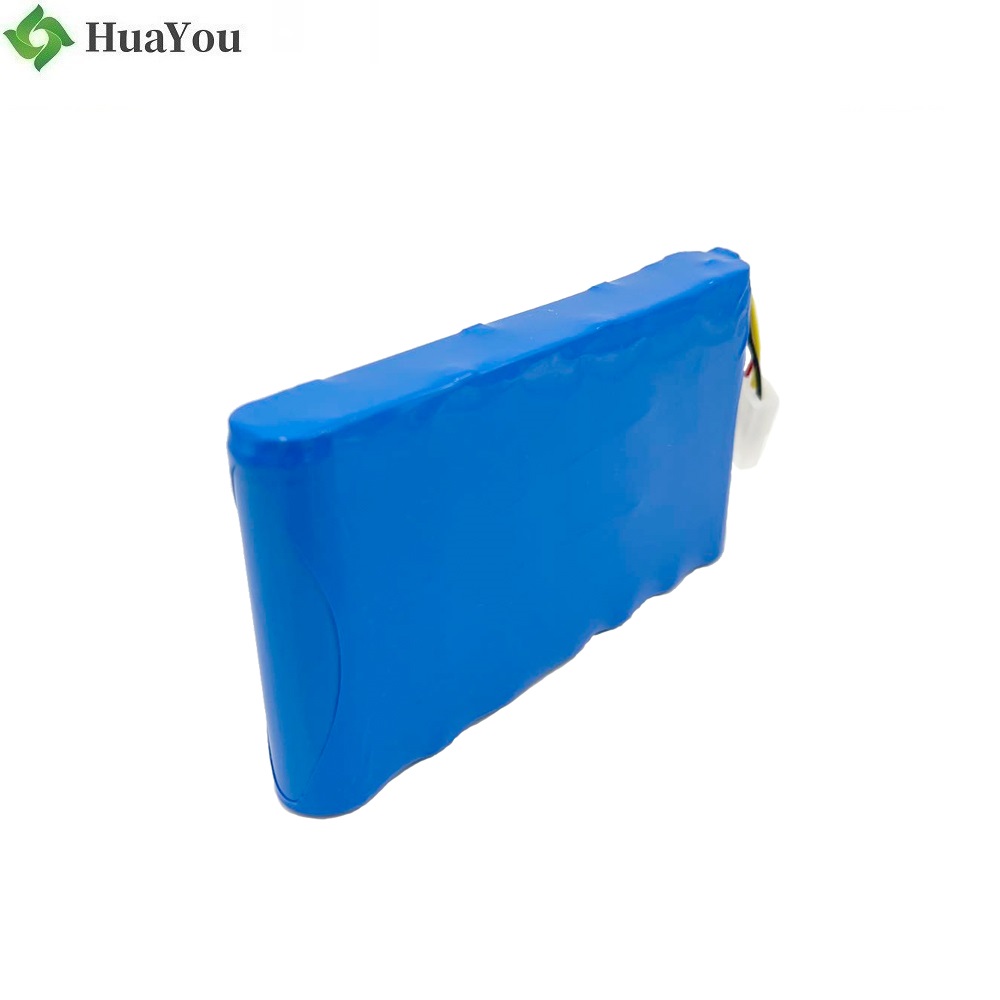

Chinese Lithium-ion Cell Manufacturer Professional Customized Cylindrical Battery for Electric Nailer HY 18650-7S 25.9V 2000mAh Rechargeable Battery Pack

$10.60
In stock
SKU
HY 18650-7S 25.9V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

    Place of Origin: GuangDong, China
    Brand Name: HY
    Model Number: 18650-7S
    Type: Li-polymer
    Nominal Voltage: 25.9V
    Size: 19*129*69mm
    Nominal Capacity: 2000mAh
    Product name: HY 18650-7S Li-ion Battery
    Warranty: 1 Year
    Weight: 333g
    Cycle life: 500 Times
    Application: Electric Nailer
    Certificate: MSDS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

China Lithium-ion Cell Manufacturer Wholesales Li-polymer Battery for Sterilizer UFX 803040 3.7V 1000mAh Lipo Battery

Professional Customized Rechargeable Battery Pack25.9V Battery for Electric NailerWholesale 18650-7S 25.9V 2000mAh Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

2100mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

2000mAh

2

Nominal Voltage

25.9V

Mean Operation Voltage

3

Voltage at end of

21.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

29.4±0.03V



5

Internal Impedance

≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 29.4V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 21.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 29.4V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 21.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1 C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max69mm

Width: max129mm
Thickness: max19mm

Initial  Dimension
