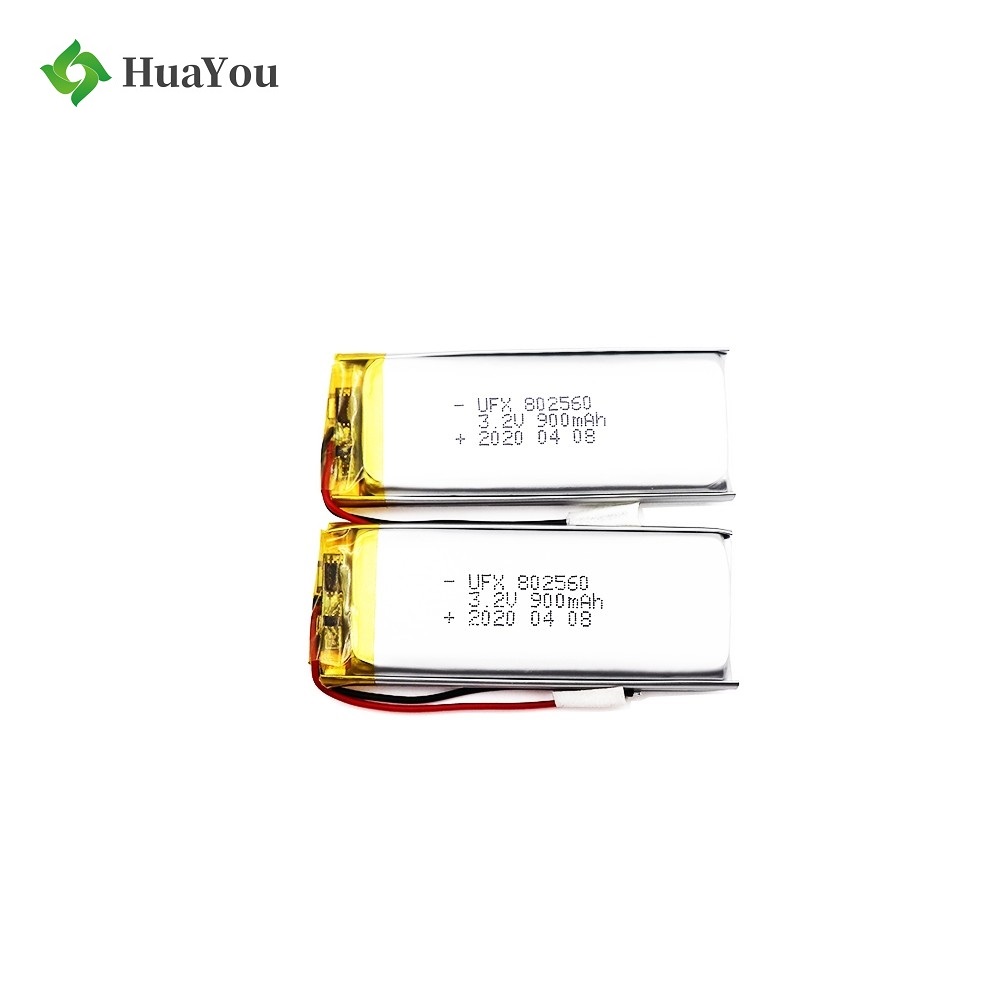

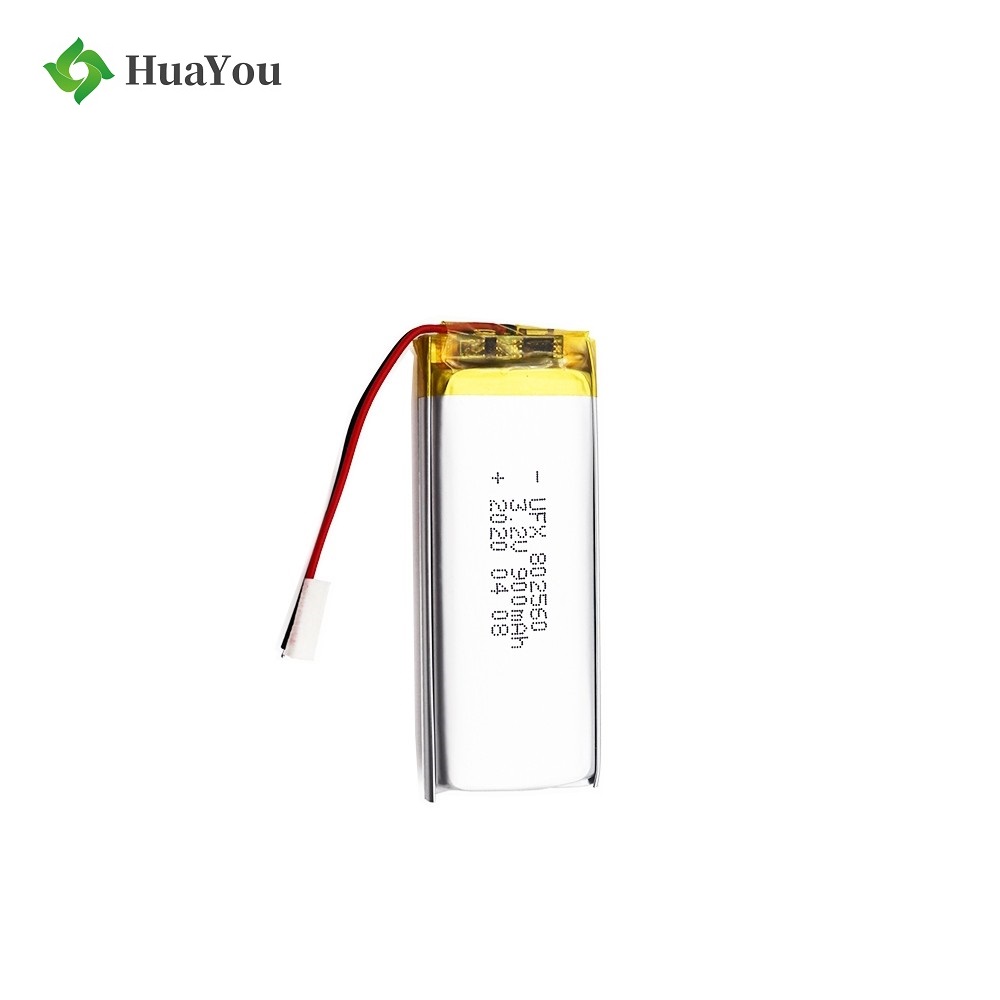

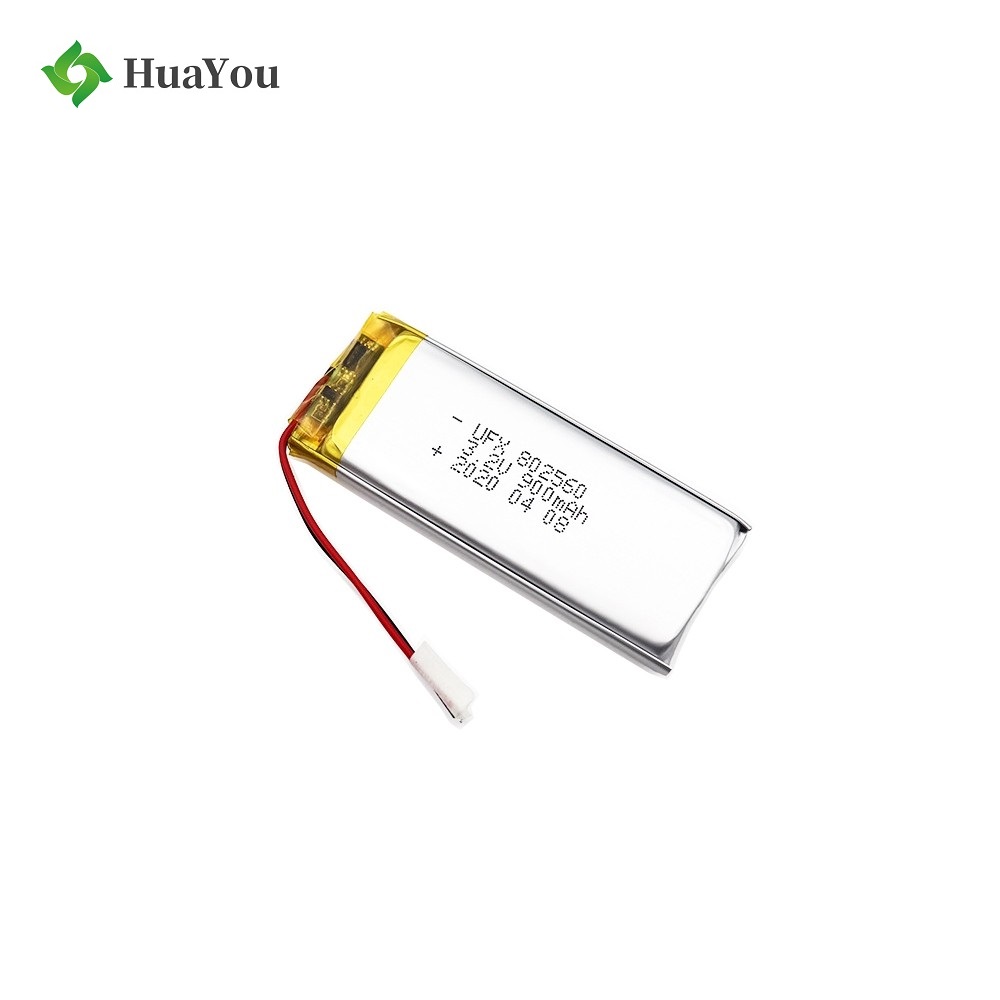

Professional Customized for Mini Fan Battery HY 802560 900mAh 3.2V LiFePO4 Battery

$2.30
In stock
SKU
802560 900mAh 3.2V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

    Model Number: 802560
    Type: LiFePO4
    Nominal Voltage: 3.2V
    Size: 8*25*62mm
    Nominal Capacity: 900mAh
    Product name: HY 802560 Rechargeable Battery
    Warranty: 1 Year
    Weight: 18g
    Cycle life: 1000 Times DOD 90%
    Application: Mini Fan Battery
    Certificate: CE/ROHS/MSDS/UN38.3
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

HuaYou Lithium battery test laboratory

HuaYou battery test laboratory

900mAh Battery for Mini Fan

802560 3.2V Lithium Iron Phosphate Battery

Professional Customized 900mAh LiFePO4 Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

920mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

900mAh

2

Nominal Voltage

3.2V

Mean Operation Voltage

3

Voltage at end of

2.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

3.6±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 3.6V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 2.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 3.6V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 2.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

3C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max62mm

Width: max25mm
Thickness: max8mm

Initial  Dimension
