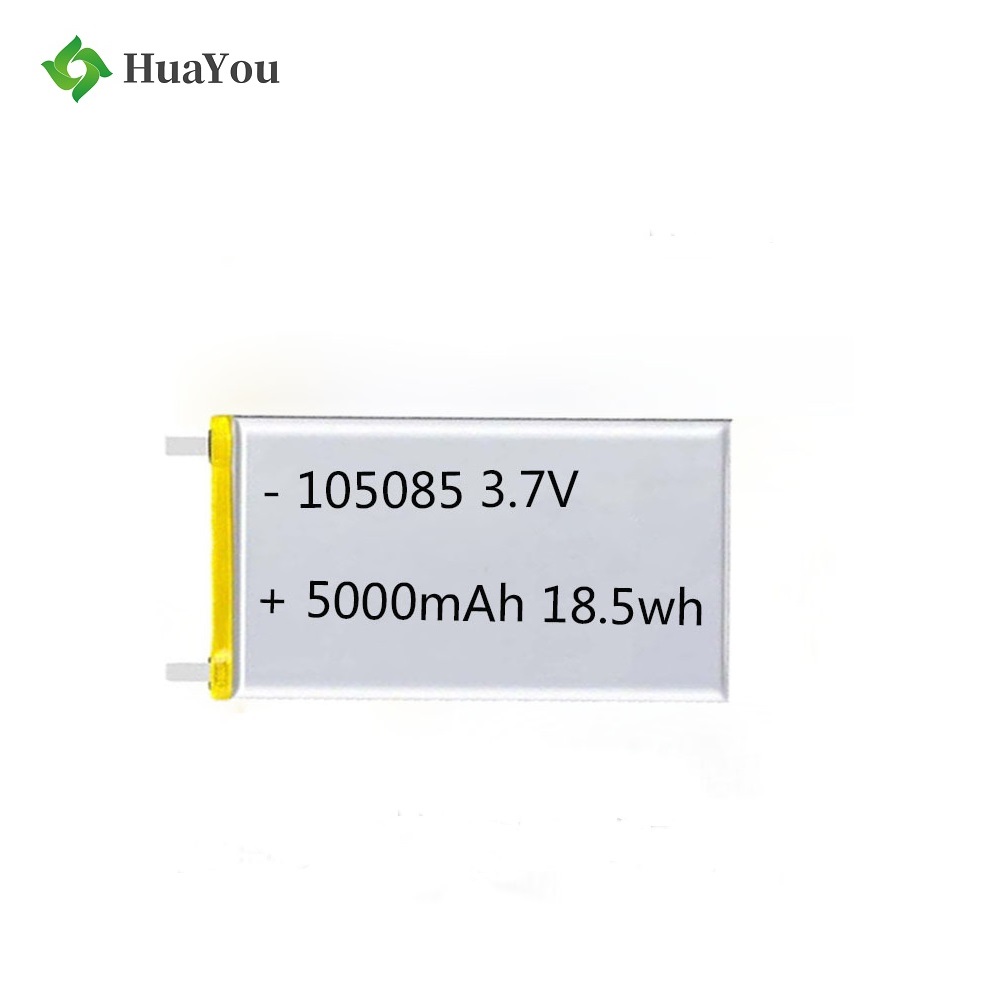

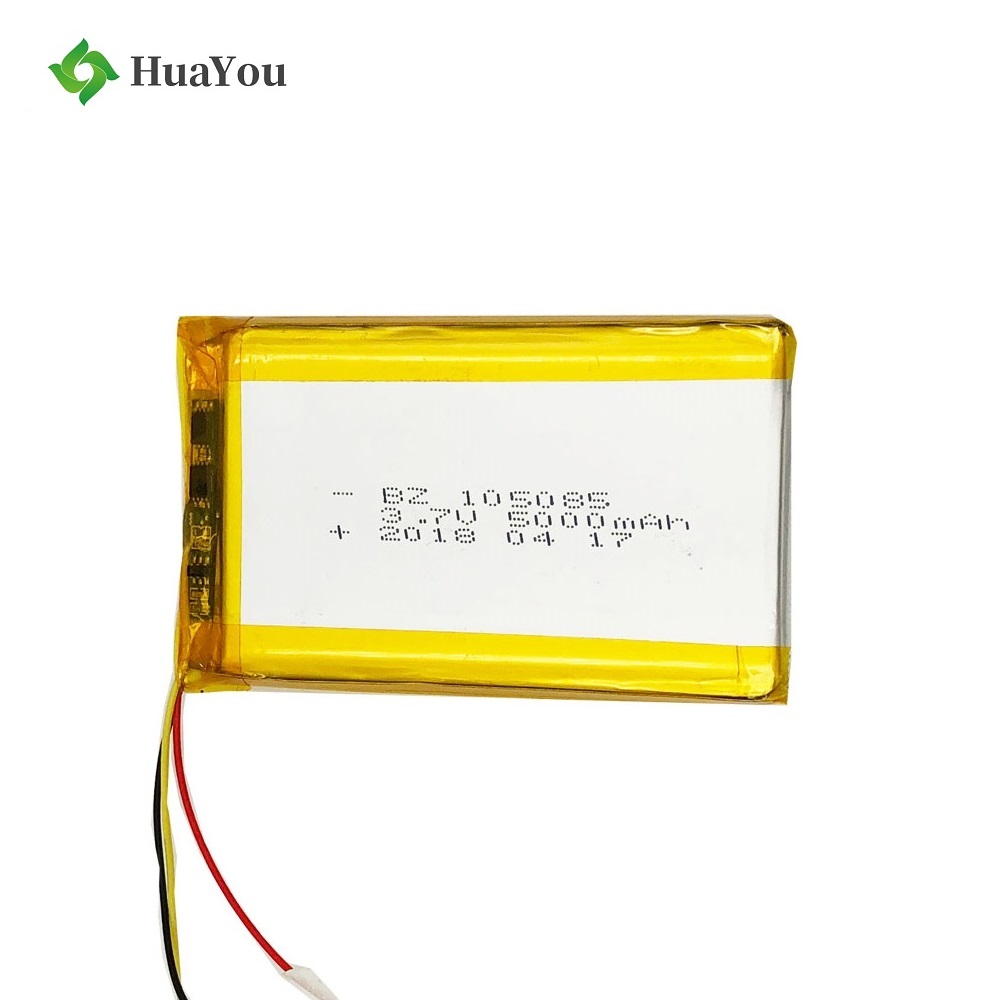

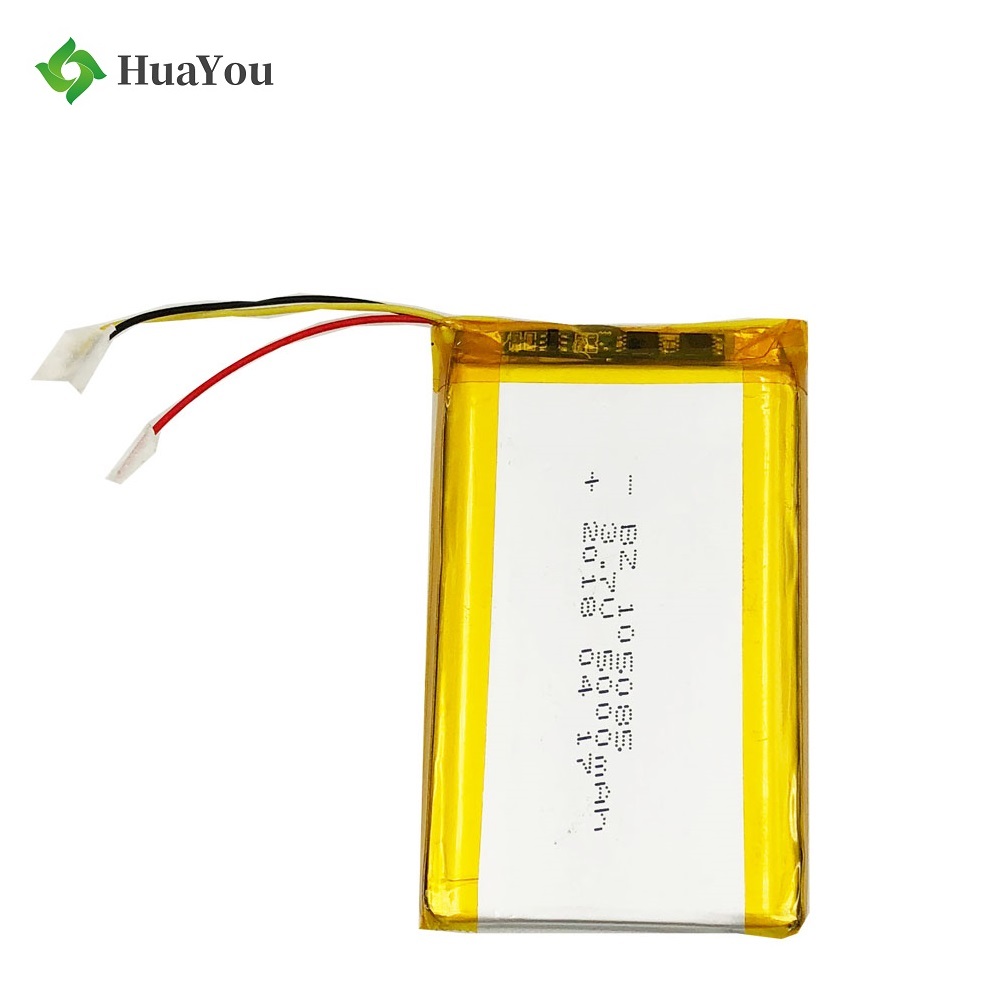

UL Certification Rechargeable Battery for Water Quality Tester HY 105085 5000mAh 3.7V LiPo Battery

$5.20
In stock
SKU
105085 5000mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

    Model Number: 105085
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 10*50*82mm
    Nominal Capacity:5000mAh
    Product name: 105085 Rechargeable battery
    Warranty: 1 Year
    Weight: 85g
    Cycle life: 500 Times
    Application: Water Quality Tester Battery
    Certificate: CE/RoHS/UN38.3/MSDS/UL
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C



HuaYou Lithium battery test laboratory

Huayou Lithium battery test laboratory



5000mAh UL Certification Lithium Battery5000mAh Battery for Water Quality Tester105085 5000mAh 3.7V LiPo Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

5200mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

5000mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤20mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max82mm

Width: max50mm
Thickness: max10mm

Initial  Dimension
