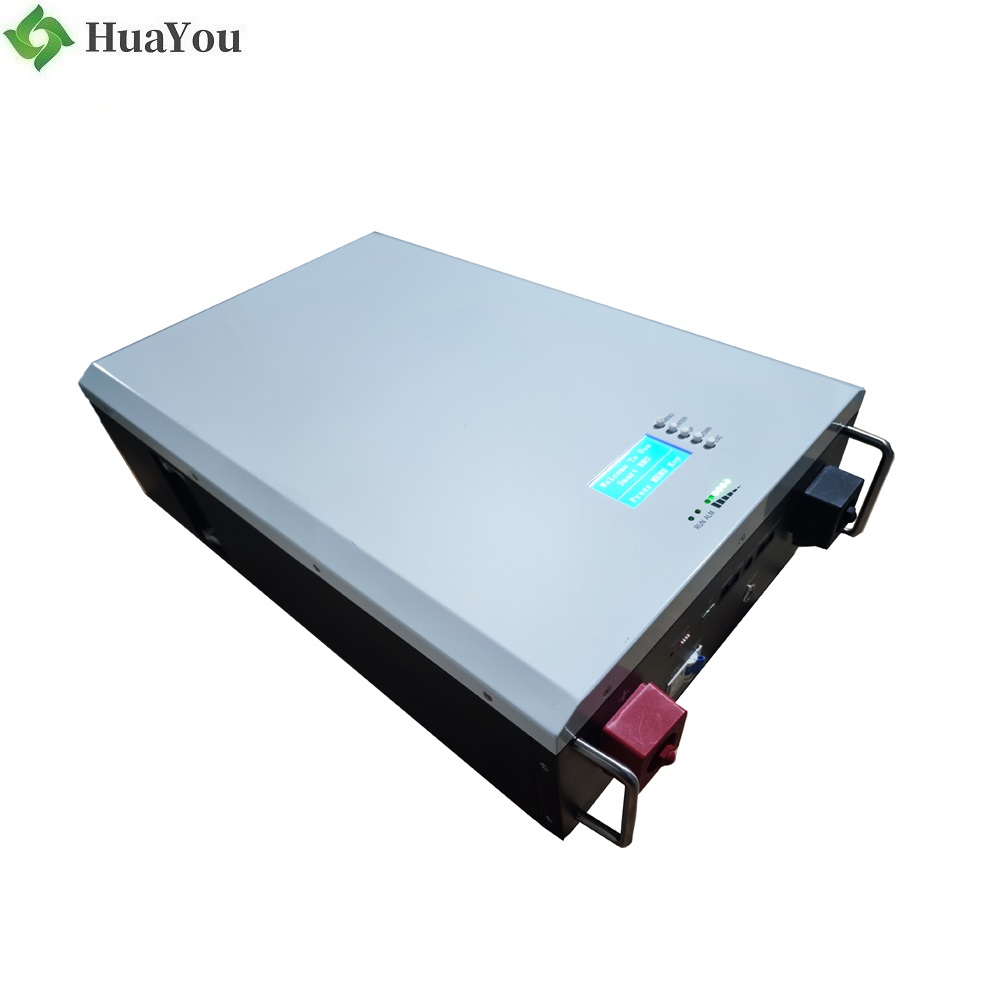

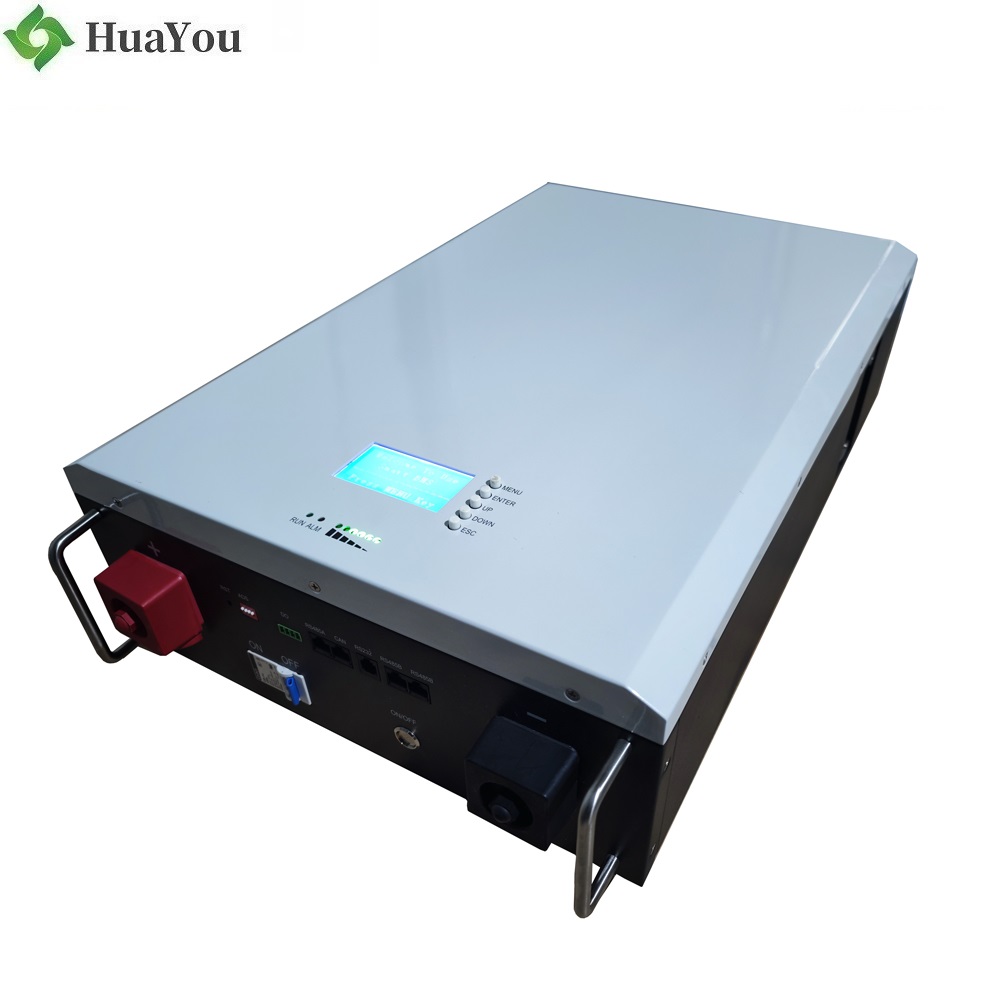

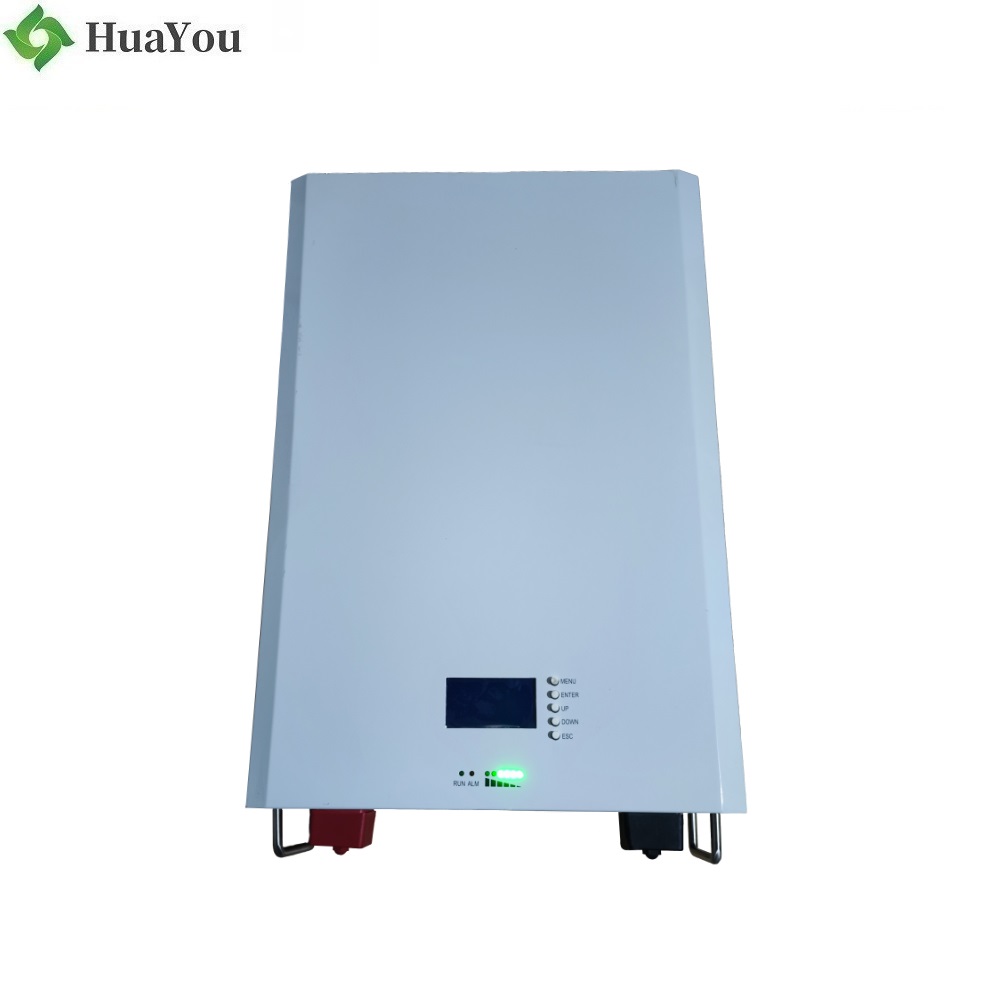

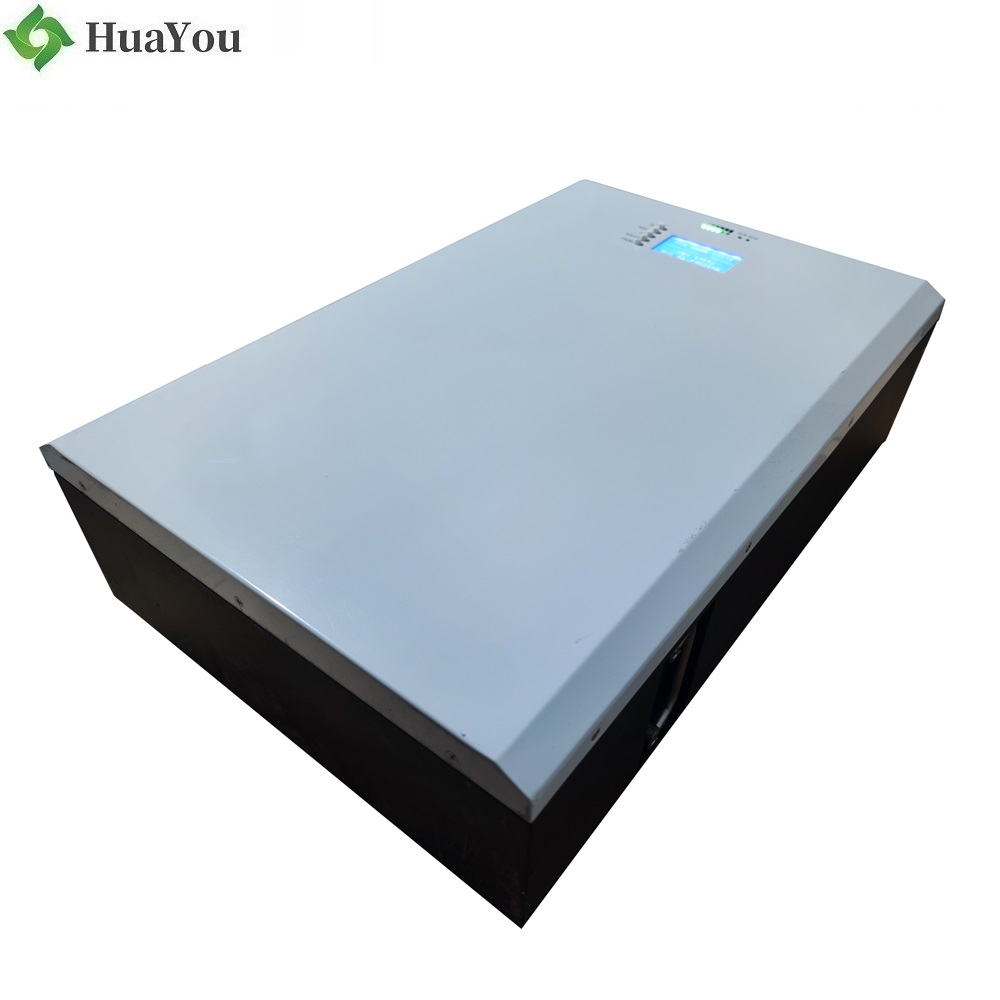

Supply Wall Mounted Battery LiFePO4 51.2V 48V 100Ah 5KWH Solar Home System Battery Pack
Min.Order Quantity: 1 PCS
Please contact us for the order !
-
Place of Origin: Guangdong, China
Brand Name: HY
Model Number: TH-48200-W
Type: LiFePO4
Nominal Voltage: 48V / 51.2V
Output Power: 5kWh
Communication: CAN, RS232, RS485
Warranty: 5 Year
Weight: 64kg
Application: Home Solar Energy Storage System
Certificate: UN38.3/MSDS/ROHS
Payment: Paypal.TT.Escrow.Western Union
Product Parameters
Model
TH-48200-W Nominal Voltage
48V / 51.2V Cell model / Configuration
3.2V 100Ah(ANC) / 15S2P Capacity
100Ah Rated Energy
5kWh Usable Energy
4.05kWh Max. Charge / Discharge Current
100A / 100A Voltage Range (Vdc)
48-56.5V Scalability
Up to 10 parallel Communication RS232-PC, RS485(B)-BAT RS485(A)-inverter,Canbus-inverter
Cycle Life
≥6000cycles@25℃, 90% DOD, 60%EOL Design Life
≥15 Years(25℃) Weight (Approx)
57kg Dimension (W/D/H)
485*690*186(226 Including hanger)mm Installation Mode
Wall hanging IP Grade
IP21 Operating Temperature (℃)
Charge: -10℃ ~ 50 ℃； Discharge: -20℃ ~ 50℃ Altitude (m)
≤2000 Humidity
≤90% (Non-condensing)
